BH1510 Reinforced Grid 3-Runner
The longest reinforced-grid model in this range, BH1510 provides a 1500 × 1000 mm deck for panels, long cartons and extended production loads. Its narrow rectangular proportion concentrates reinforcement along the main travel direction.
Request a Quote- Dimensions
- 1500 × 1000 × 150 mm
- Reference weight
- 31.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Reinforced grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 6–12 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,000 kg
- Rack load
- 1,600 kg
AS/RS Performance Shaped Around This Footprint
A long platform for extended unit loads
The extra 100 mm over BH1410 is meaningful for long products whose end support would otherwise be marginal. Keeping the width at 1000 mm limits unnecessary pallet area and helps preserve predictable load clearance.
Automated handling characteristics

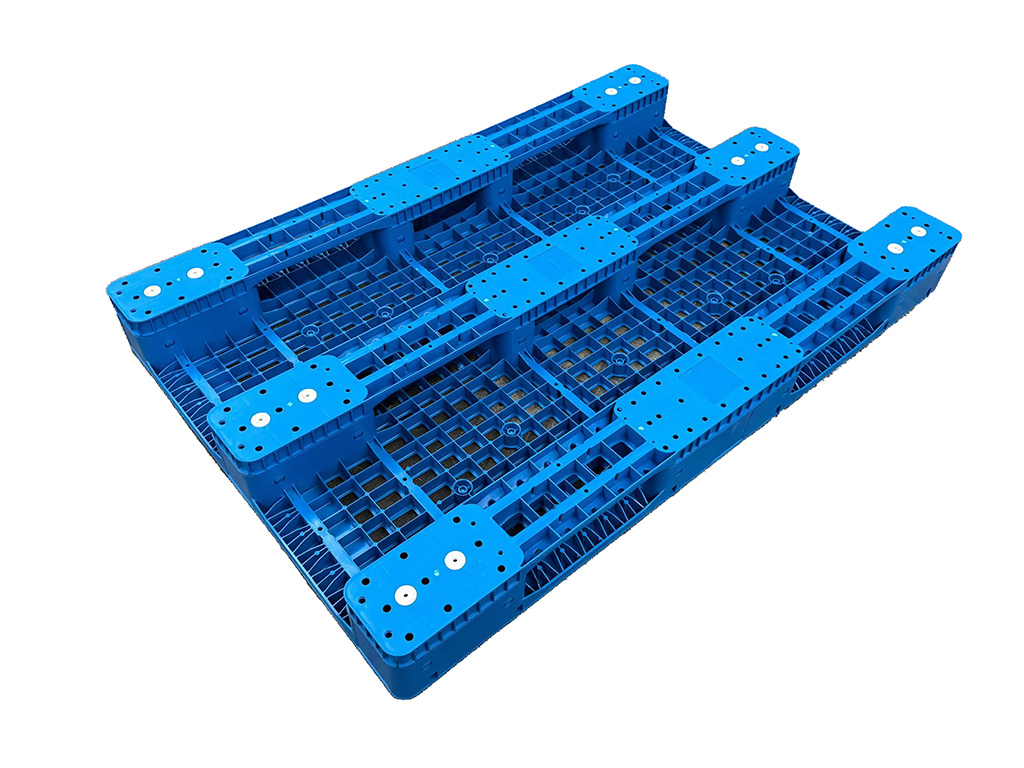

Its three runners and visible bottom structure make support orientation easy to define during equipment design. Reinforcement can follow the long axis to control repeated transfers between conveyor, shuttle and rack.

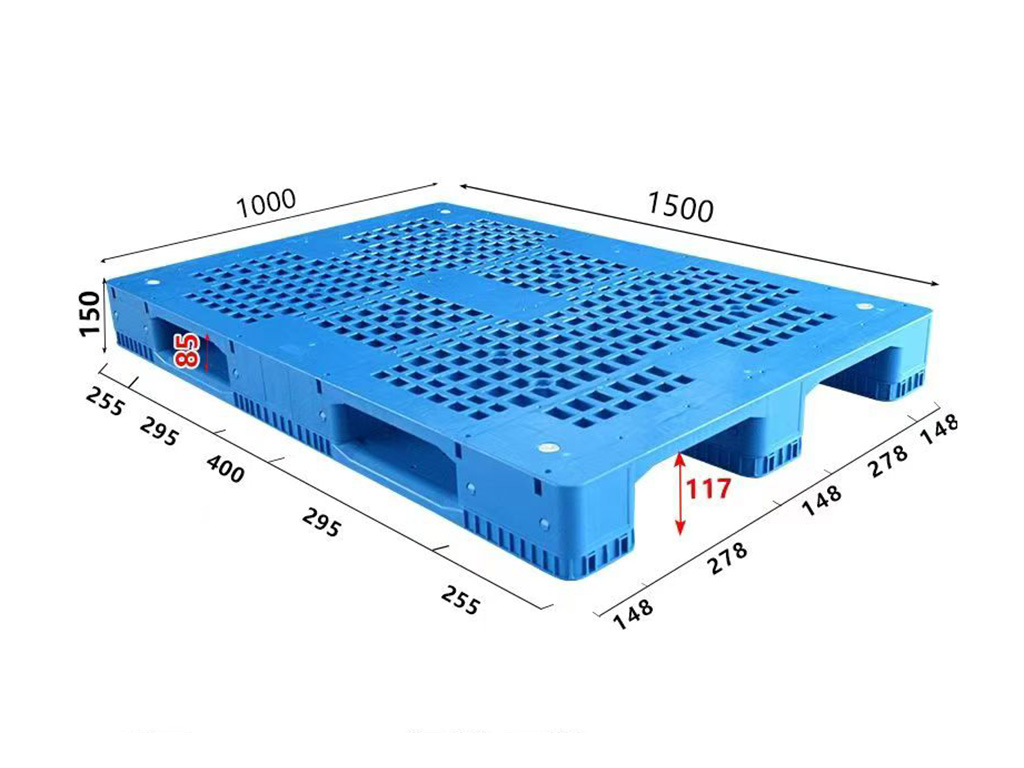

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
