Grid Deck 3-Runner AS/RS Pallets
A broad family of ventilated HDPE pallets with three continuous runners, dimensional consistency and project-configured steel reinforcement for automated storage.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Colors
- Blue or custom
- Steel tubes
- Project-configured
Structure & Application Notes
The open grid deck combines a lighter structure with airflow, drainage and easy visual inspection. Three continuous runners create predictable contact with rack supports and common conveyor layouts, while four-way entry keeps manual handling flexible around the automated flow.
Built around the equipment interface

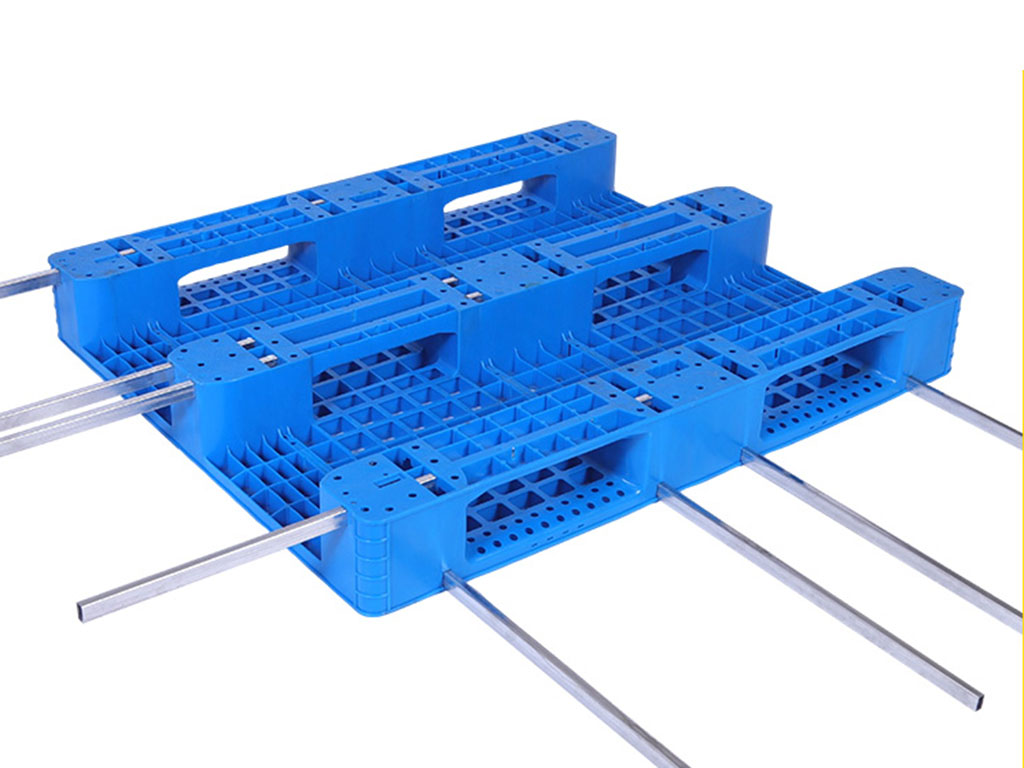

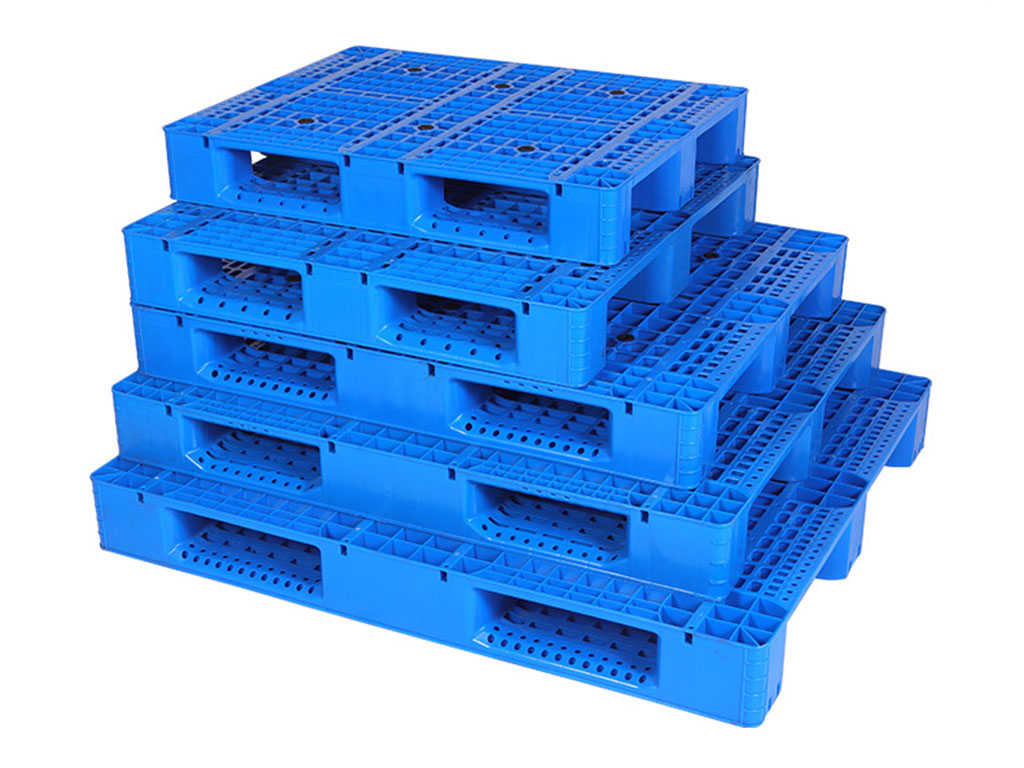

The range covers compact regional footprints, mainstream 1200 mm formats and extended project sizes up to 1800 × 1200 mm. This lets the pallet footprint follow the actual unit load instead of forcing oversized goods onto a smaller platform. Steel tubes can be positioned through the deck and runners to shape stiffness around rack span, shuttle pickup and conveyor transfer points.
Configuration options
- Deck and runner reinforcement layouts for defined support conditions
- Anti-slip plugs and identification positions where supported by the mold
- Custom color, molded logo, printing and sequential fleet marking
- Interface review for roller conveyor, chain conveyor, shuttle and stacker crane systems
Choose the Right Footprint and Structure
-

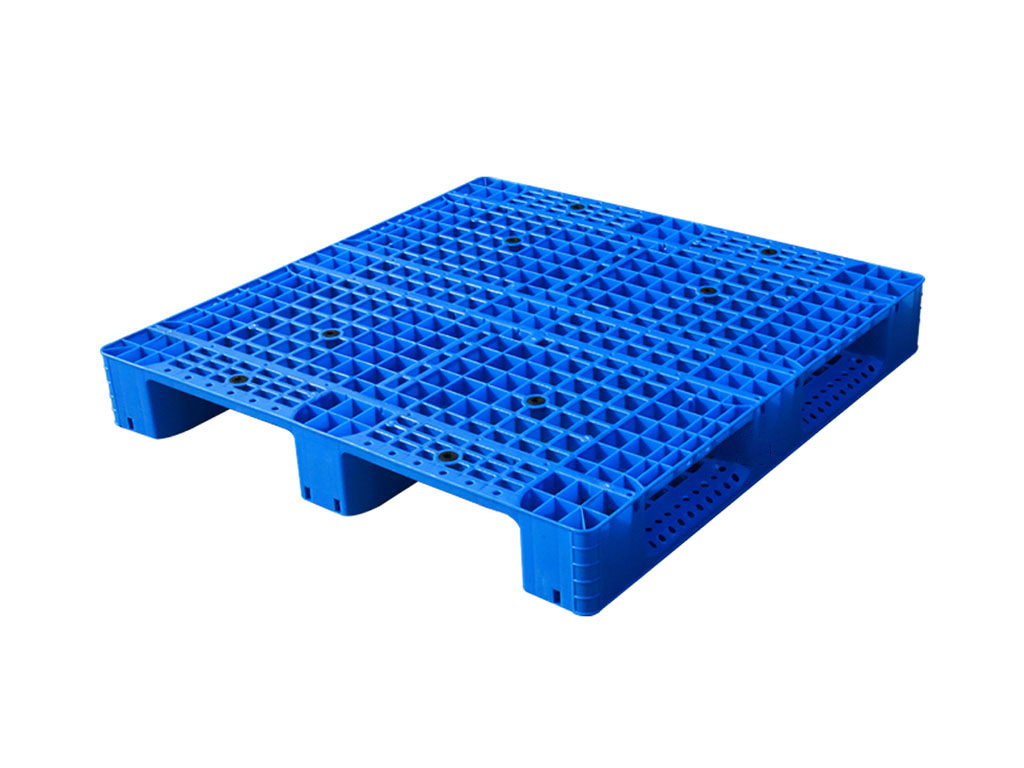

BH1111 Grid 3-Runner
A square 1100 × 1100 mm pallet with balanced load coverage and a consistent interface for compact …
- Dimensions
- 1100 × 1100 × 150 mm
- Material
- HDPE
-
BH1208 Grid 3-Runner
A space-efficient Euro footprint for automated warehouses handling cartons, totes and export-ready unit …
- Dimensions
- 1200 × 800 × 150 mm
- Material
- HDPE
-
BH1210 Grid 3-Runner
A versatile 1200 × 1000 mm three-runner pallet that balances storage density, unit-load coverage and …
- Dimensions
- 1200 × 1000 × 150 mm
- Material
- HDPE
-

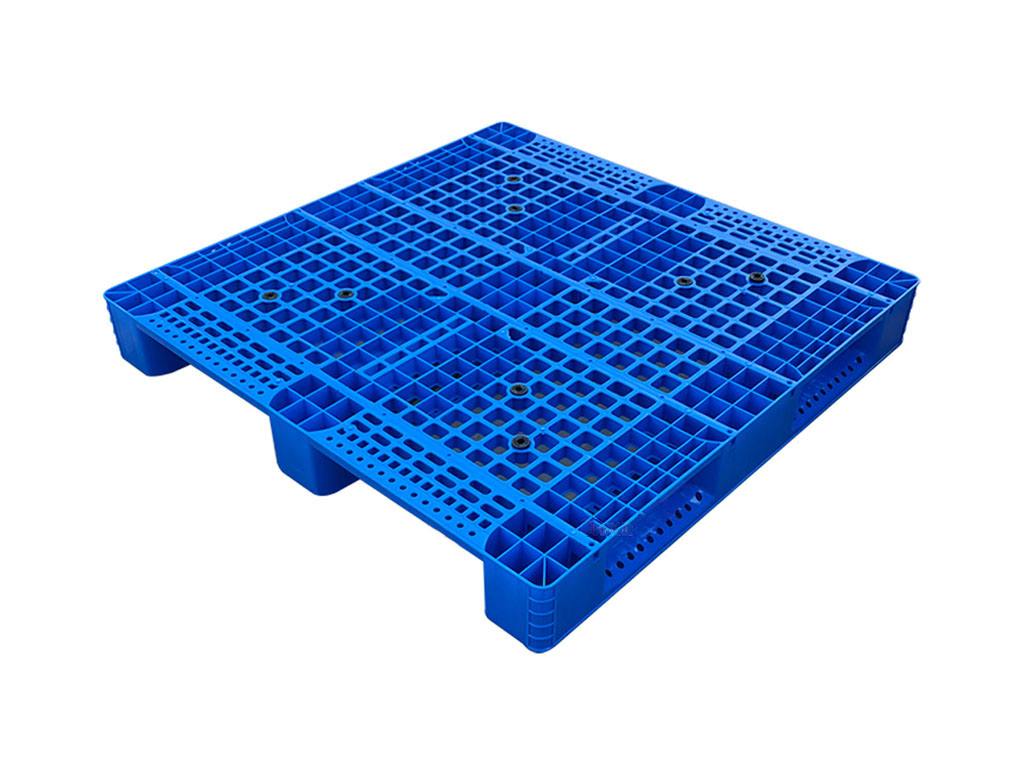

BH1212 Grid 3-Runner
A broad square pallet for stable support of drums, bulk cartons and evenly distributed automated …
- Dimensions
- 1200 × 1200 × 150 mm
- Material
- HDPE
-

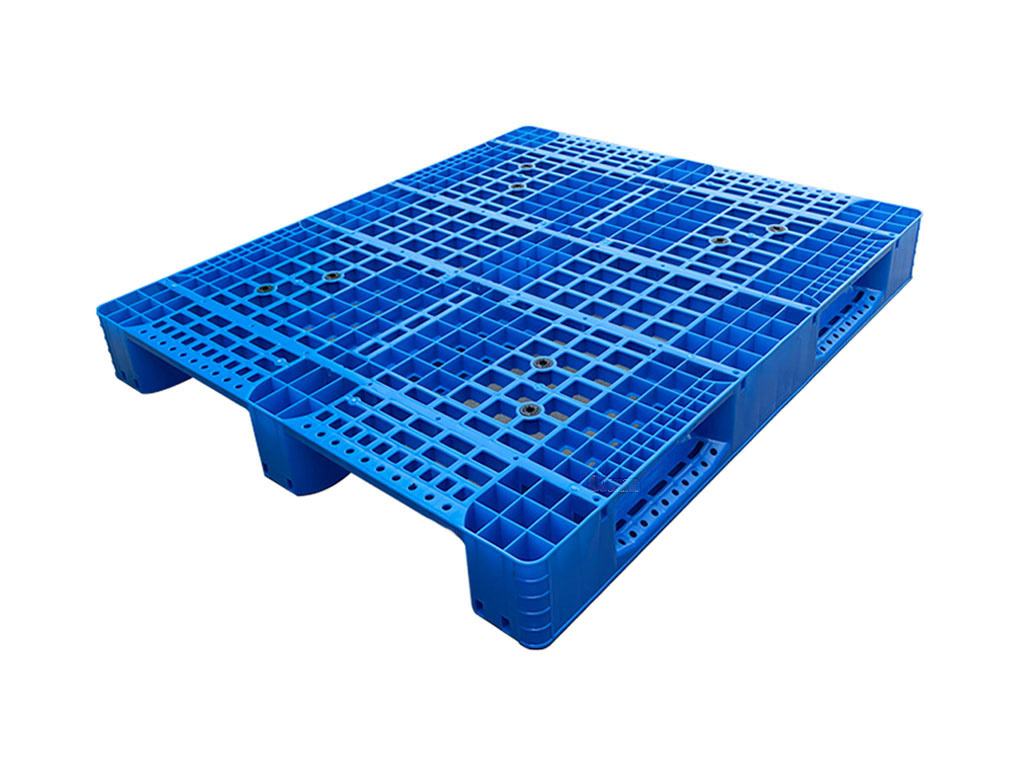

BH1311 Grid 3-Runner
An intermediate 1300 × 1100 mm footprint for loads that need more length than square 1100 mm pallets …
- Dimensions
- 1300 × 1100 × 150 mm
- Material
- HDPE
-

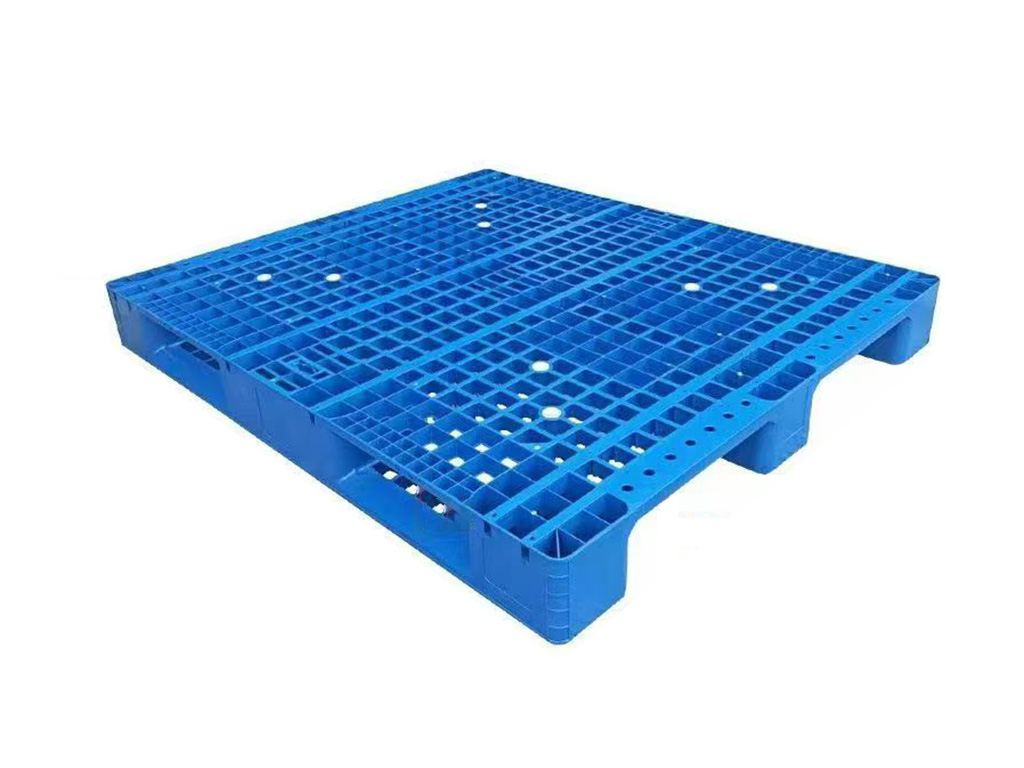

BH1412A Grid 3-Runner
A low-profile 1400 × 1200 mm platform that provides broad load coverage while preserving vertical …
- Dimensions
- 1400 × 1200 × 150 mm
- Material
- HDPE
-

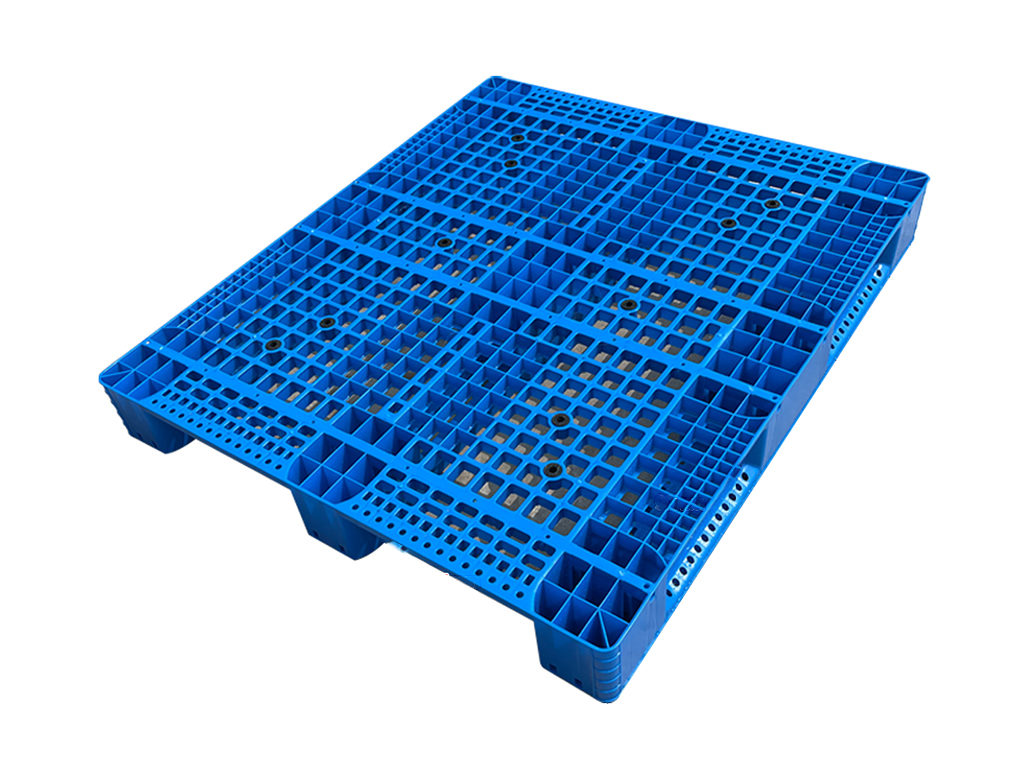

BH1412B Grid 3-Runner
A deeper 160 mm 1400 × 1200 mm pallet with a robust lengthwise base for demanding automated rack and …
- Dimensions
- 1400 × 1200 × 160 mm
- Material
- HDPE
-

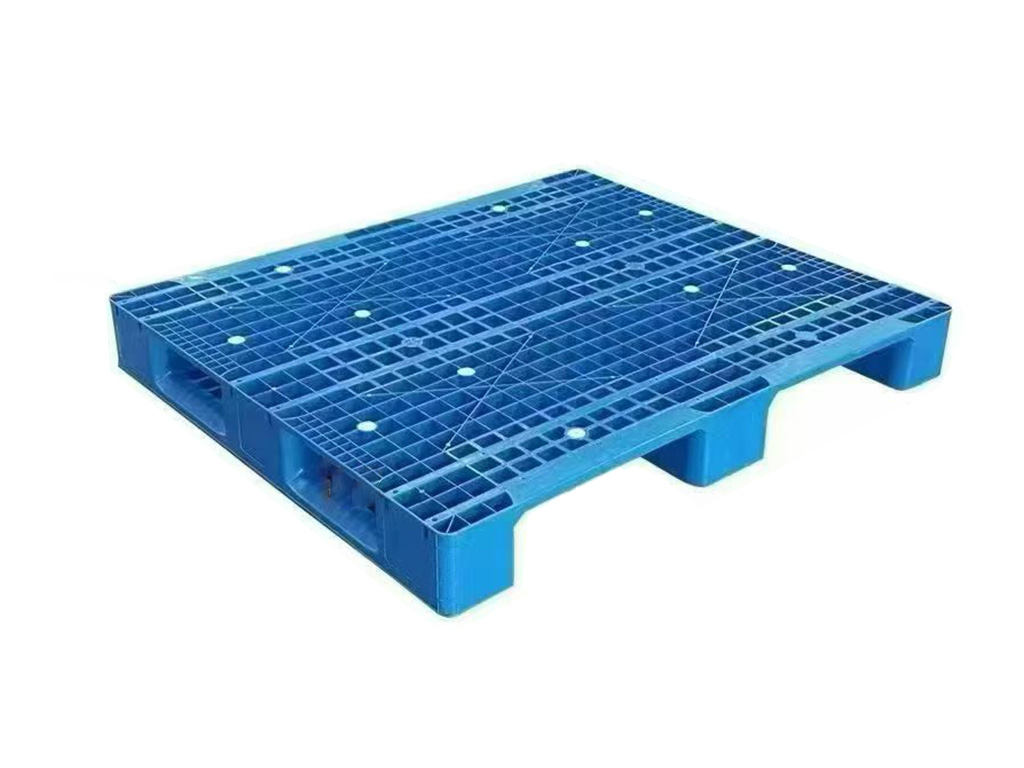

BH1412-W Grid 3-Runner
A 160 mm-high 1400 × 1200 mm pallet with runners following the 1200 mm width. Its transverse bearing …
- Dimensions
- 1400 × 1200 × 160 mm
- Material
- HDPE
-
BH1512 Grid 3-Runner
An extended 1500 × 1200 mm platform for long cartons, assemblies and industrial loads that need more deck …
- Dimensions
- 1500 × 1200 × 150 mm
- Material
- HDPE
-

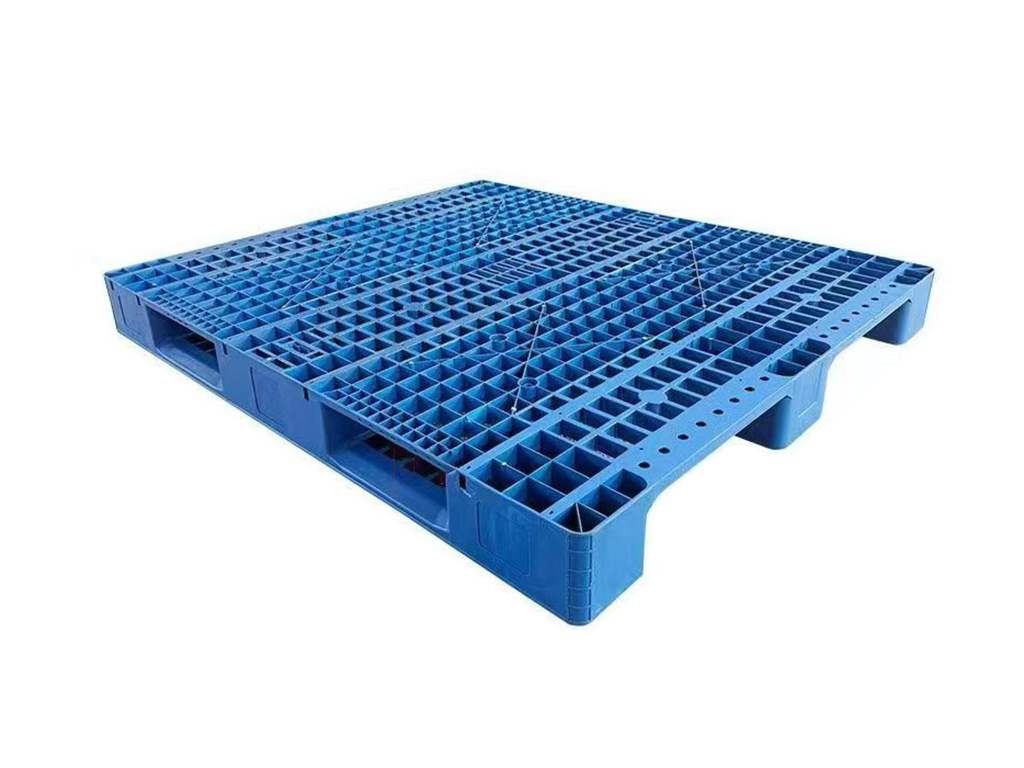

BH1513 Grid 3-Runner
A wide 1500 × 1300 mm pallet for bulky rectangular loads that need both extended length and added lateral …
- Dimensions
- 1500 × 1300 × 150 mm
- Material
- HDPE
-

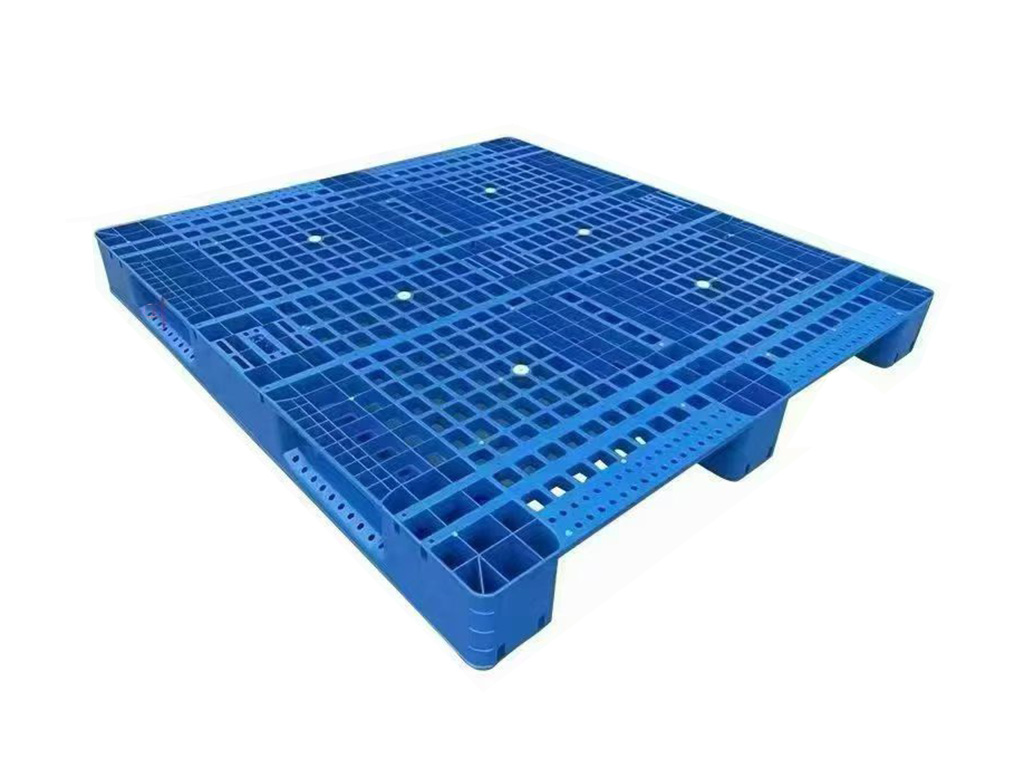

BH1514 Grid 3-Runner
A near-square 1500 × 1400 mm platform that spreads large automated warehouse loads across a broad support …
- Dimensions
- 1500 × 1400 × 155 mm
- Material
- HDPE
-

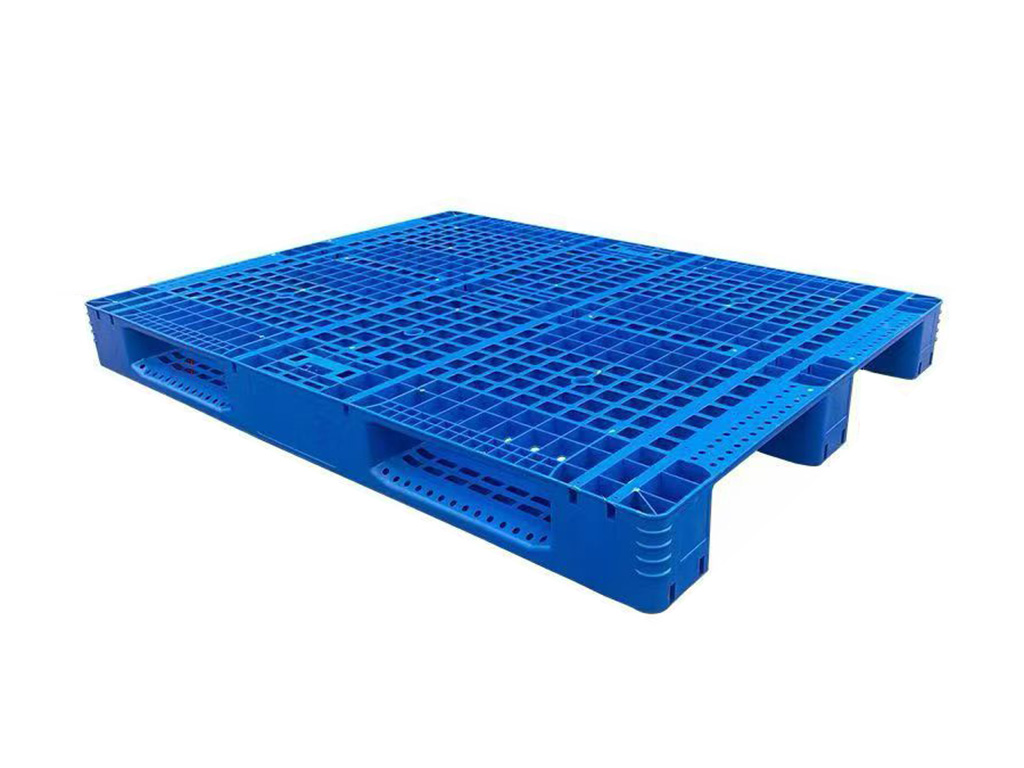

BH1612 Grid 3-Runner
A 1600 × 1200 mm long-load pallet for industrial assemblies and packaging that exceed standard automated …
- Dimensions
- 1600 × 1200 × 155 mm
- Material
- HDPE
-

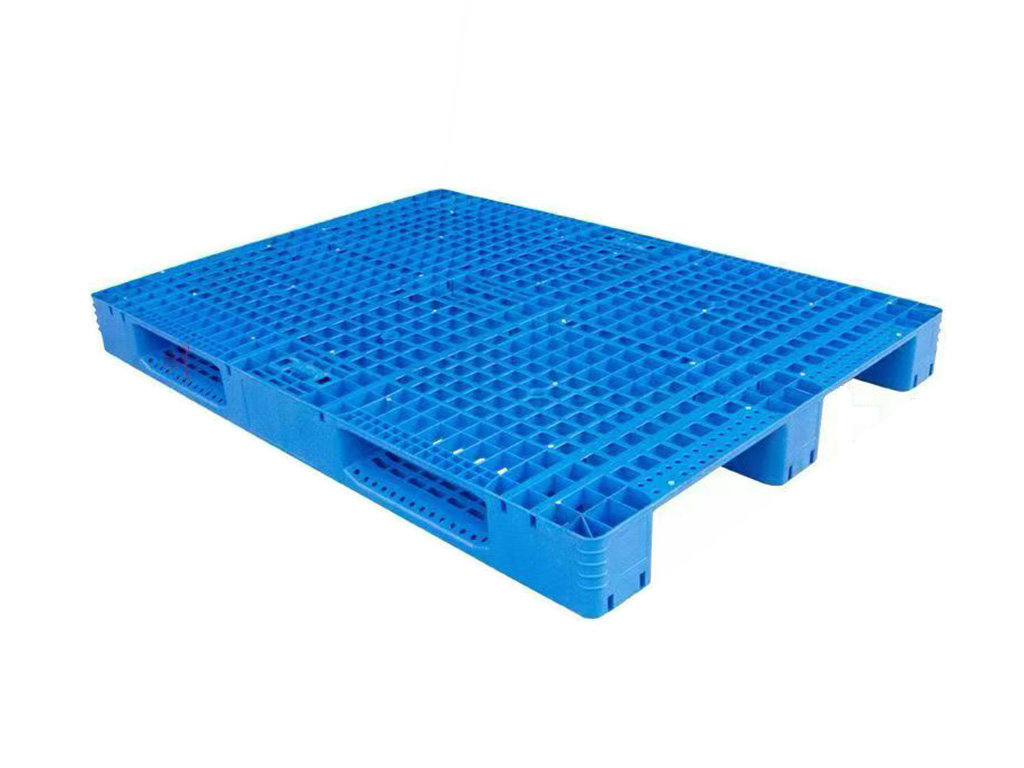

BH1712 Grid 3-Runner
An extra-long 1700 × 1200 mm pallet for production assemblies, panel packs and dedicated automated …
- Dimensions
- 1700 × 1200 × 155 mm
- Material
- HDPE
-

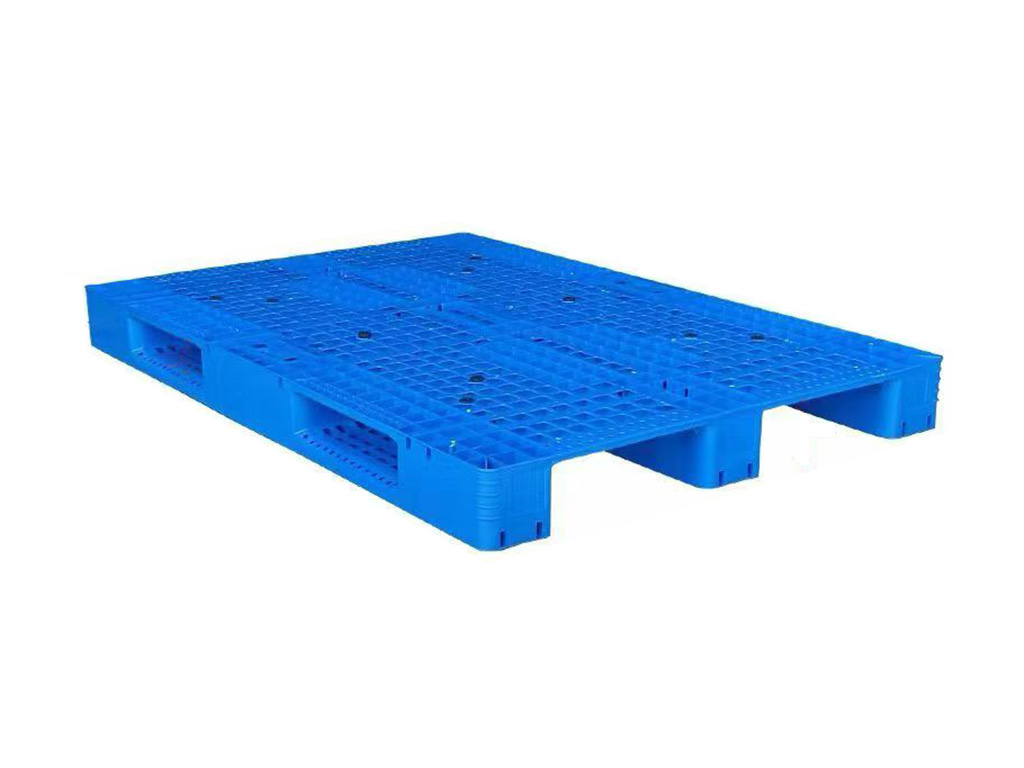

BH1812 Grid 3-Runner
The longest 1800 × 1200 mm model in the range, built for oversized industrial loads moving through a …
- Dimensions
- 1800 × 1200 × 155 mm
- Material
- HDPE
Models & Reference Configurations
| Model | Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|---|
| BH1111 | 1100 × 1100 mm | 150 mm | 18.5 kg | 4–8 tubes |
| BH1208 | 1200 × 800 mm | 150 mm | 17.0 kg | 4–8 tubes |
| BH1210 | 1200 × 1000 mm | 150 mm | 19.5 kg | 4–8 tubes |
| BH1212 | 1200 × 1200 mm | 150 mm | 22.5 kg | 4–8 tubes |
| BH1311 | 1300 × 1100 mm | 150 mm | 23.5 kg | 4–8 tubes |
| BH1412-W | 1400 × 1200 mm | 160 mm | 27.5 kg | 5–10 tubes |
| BH1412A | 1400 × 1200 mm | 150 mm | 26.5 kg | 5–10 tubes |
| BH1412B | 1400 × 1200 mm | 160 mm | 29.0 kg | 6–12 tubes |
| BH1512 | 1500 × 1200 mm | 150 mm | 29.5 kg | 6–12 tubes |
| BH1513 | 1500 × 1300 mm | 150 mm | 32.0 kg | 6–12 tubes |
| BH1514 | 1500 × 1400 mm | 155 mm | 34.5 kg | 6–12 tubes |
| BH1612 | 1600 × 1200 mm | 155 mm | 34.0 kg | 6–12 tubes |
| BH1712 | 1700 × 1200 mm | 155 mm | 36.0 kg | 6–12 tubes |
| BH1812 | 1800 × 1200 mm | 155 mm | 38.0 kg | 8–14 tubes |
Published values are reference configurations; steel layouts and load ratings can be adjusted around the equipment interface and operating profile.
