Reinforced Solid Deck 3-Runner AS/RS Pallets
A heavy-duty closed-deck family with expanded steel capacity and multiple structural depths for large automated unit loads.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Reinforced solid deck · 3 runners
- Fork entry
- 4-way
- Colors
- Blue, green, white or custom
- Steel tubes
- Expanded project configuration
Structure & Application Notes
This family combines a continuous closed deck with deeper ribs and an expanded reinforcement envelope. It is intended for large unit loads that need a clean surface and tighter deflection control as they move between conveyor, shuttle and rack support.
Two structural depths for repeated footprints
Several footprints are offered in A and B versions. The 150 mm A structure keeps the interface compact, while the 160 or 170 mm B structure adds section depth for more demanding spans and concentrated loads. This lets projects keep the same plan dimensions while selecting the vertical structure that better suits the equipment route.
Configuration options
- Expanded deck and runner steel layouts for broad support spans
- Anti-slip elements and load-location features
- Custom colors, logos, printing and serial identification
- Interface review for conveyors, shuttles, stacker cranes and racks
Choose the Right Footprint and Structure
-
BH1210 Reinforced Solid 3-Runner
A reinforced 1200 × 1000 mm solid-deck pallet that brings heavy-duty steel capacity to a widely used …
- Dimensions
- 1200 × 1000 × 150 mm
- Material
- HDPE
-

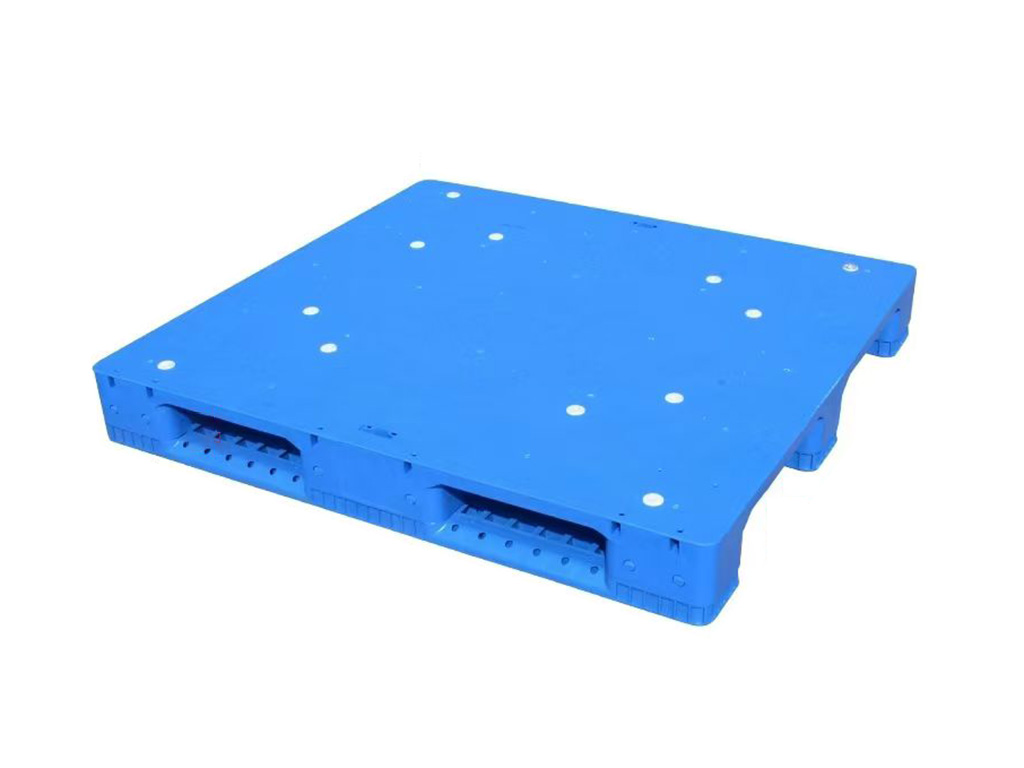

BH1211A Reinforced Solid 3-Runner
The 150 mm A version of the 1200 × 1100 mm reinforced solid pallet adds deck width while retaining a low …
- Dimensions
- 1200 × 1100 × 150 mm
- Material
- HDPE
-

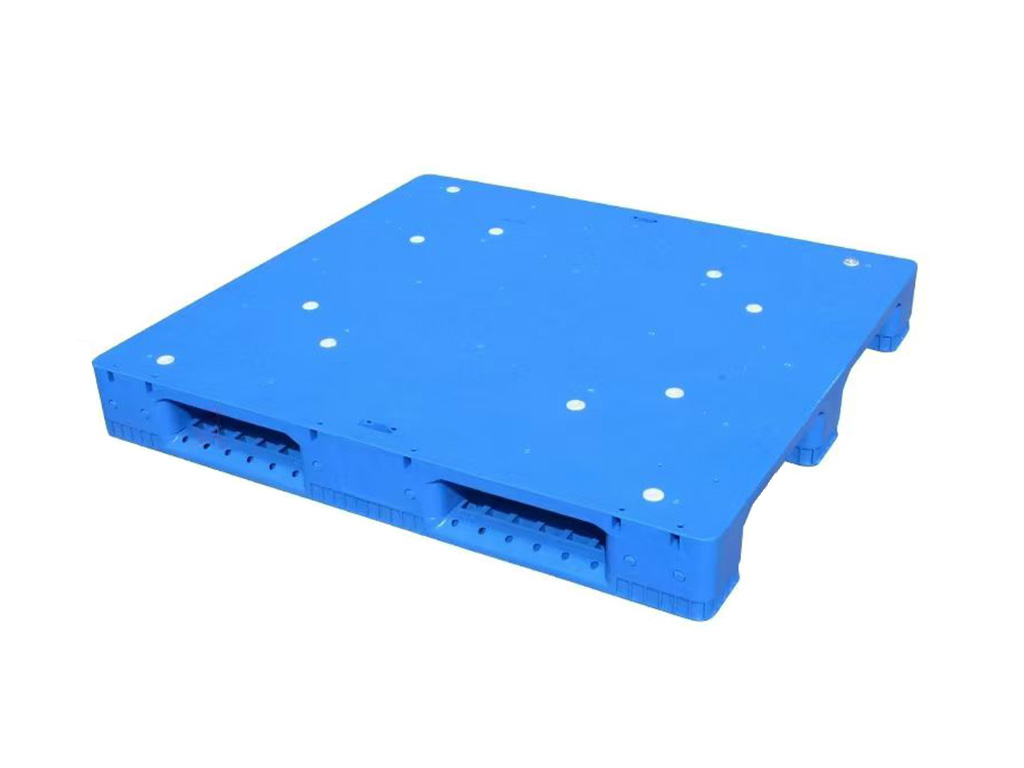

BH1211B Reinforced Solid 3-Runner
The 160 mm B version shares the 1200 × 1100 mm footprint with BH1211A but adds structural depth and …
- Dimensions
- 1200 × 1100 × 160 mm
- Material
- HDPE
-

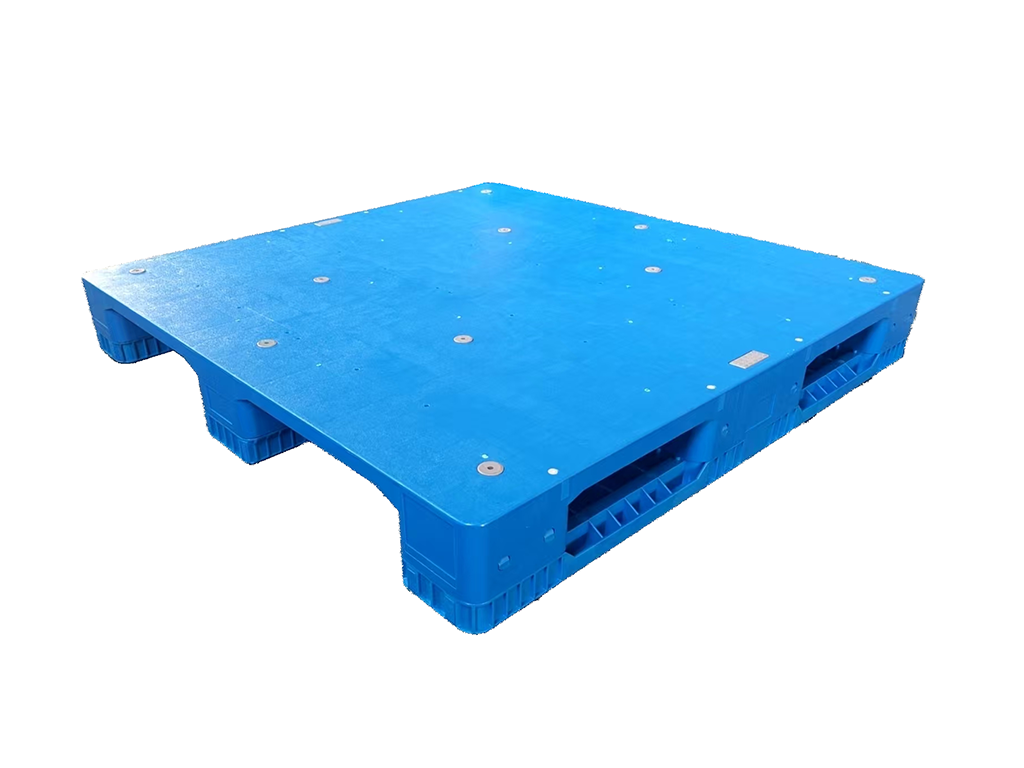

BH1212 Reinforced Solid 3-Runner
A reinforced 1200 × 1200 mm square solid pallet for balanced heavy unit loads. Its equal-sided closed …
- Dimensions
- 1200 × 1200 × 150 mm
- Material
- HDPE
-

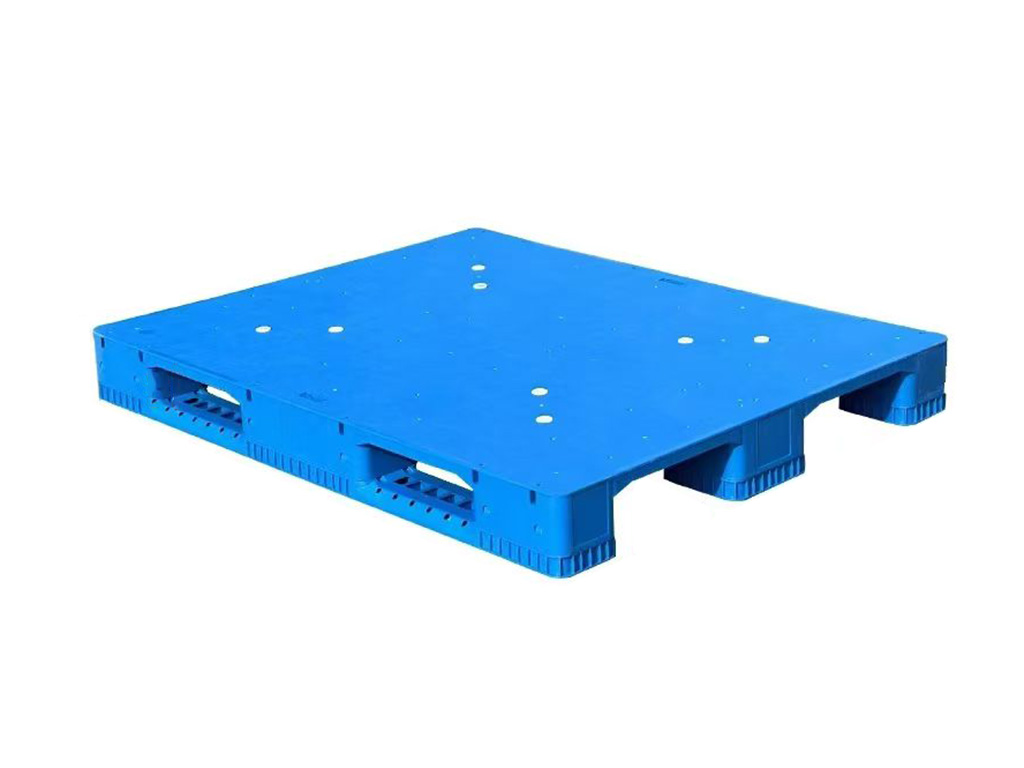

BH1410 Reinforced Solid 3-Runner
A long 1400 × 1000 mm reinforced solid pallet for wide cartons, panels and production fixtures. The 150 …
- Dimensions
- 1400 × 1000 × 150 mm
- Material
- HDPE
-
BH1411A Reinforced Solid 3-Runner
The 150 mm A version of the 1400 × 1100 mm reinforced solid pallet gives elongated loads extra width …
- Dimensions
- 1400 × 1100 × 150 mm
- Material
- HDPE
-

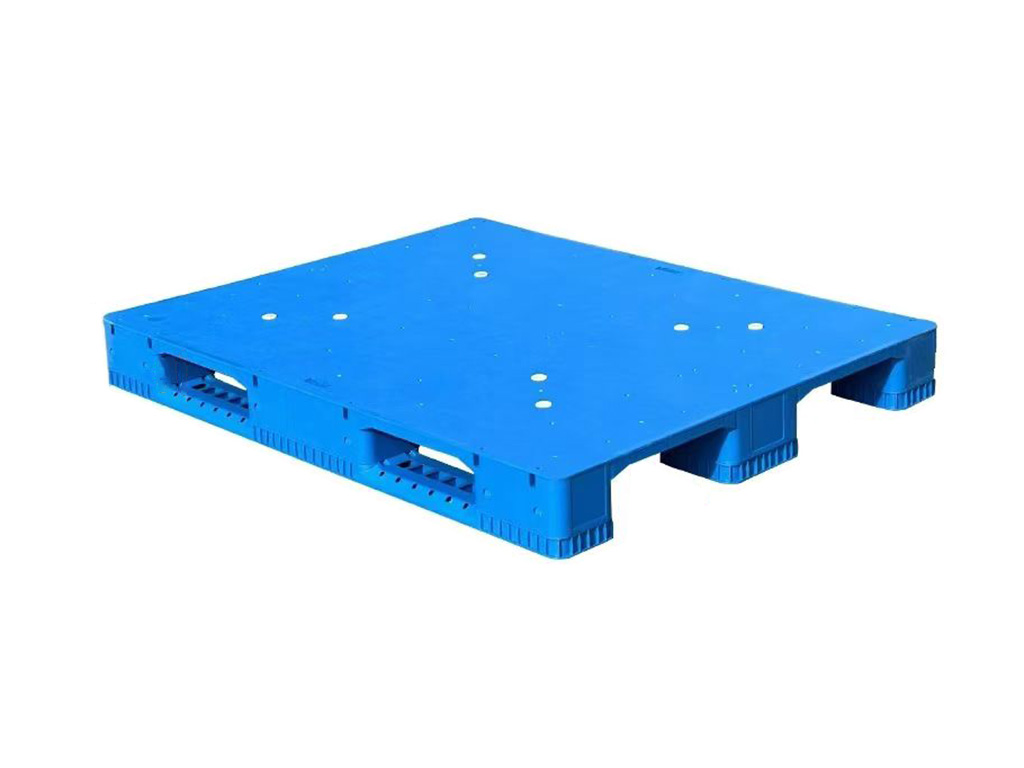

BH1411B Reinforced Solid 3-Runner
The 170 mm B version of BH1411 uses a deeper section for demanding 1400 × 1100 mm loads. It keeps the …
- Dimensions
- 1400 × 1100 × 170 mm
- Material
- HDPE
-
BH1412A Reinforced Solid 3-Runner
A broad 1400 × 1200 mm reinforced solid pallet in a 150 mm A profile. It provides substantial closed deck …
- Dimensions
- 1400 × 1200 × 150 mm
- Material
- HDPE
-

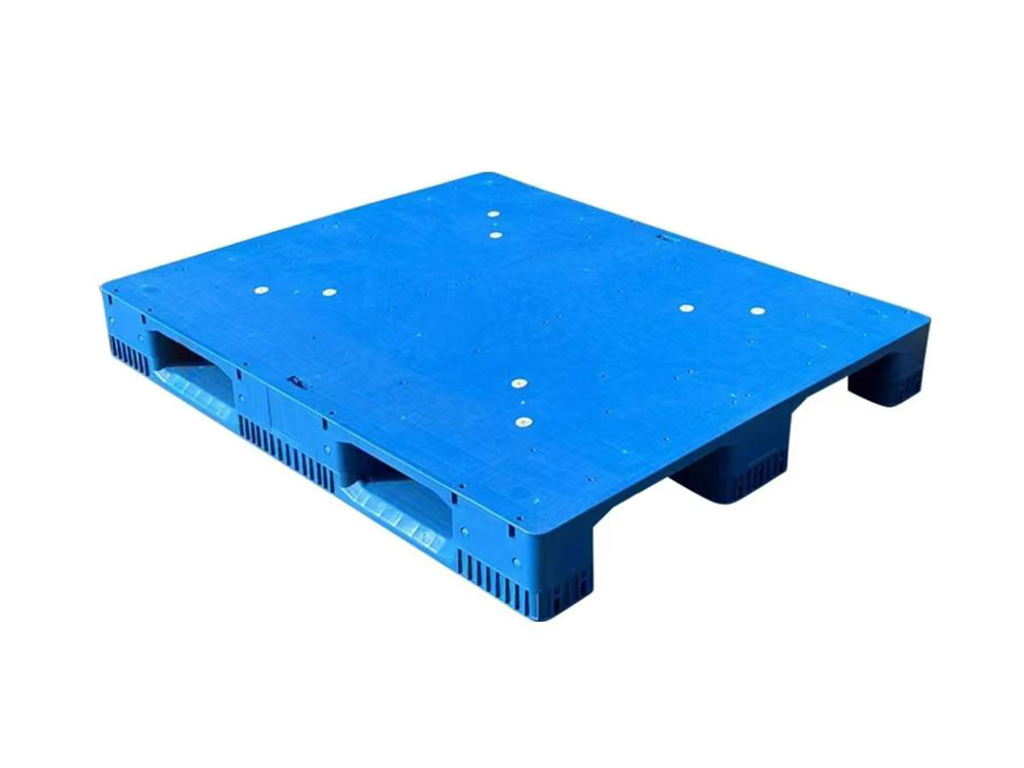

BH1412B Reinforced Solid 3-Runner
The 170 mm B version brings greater structural depth to the same 1400 × 1200 mm closed deck as BH1412A. …
- Dimensions
- 1400 × 1200 × 170 mm
- Material
- HDPE
-

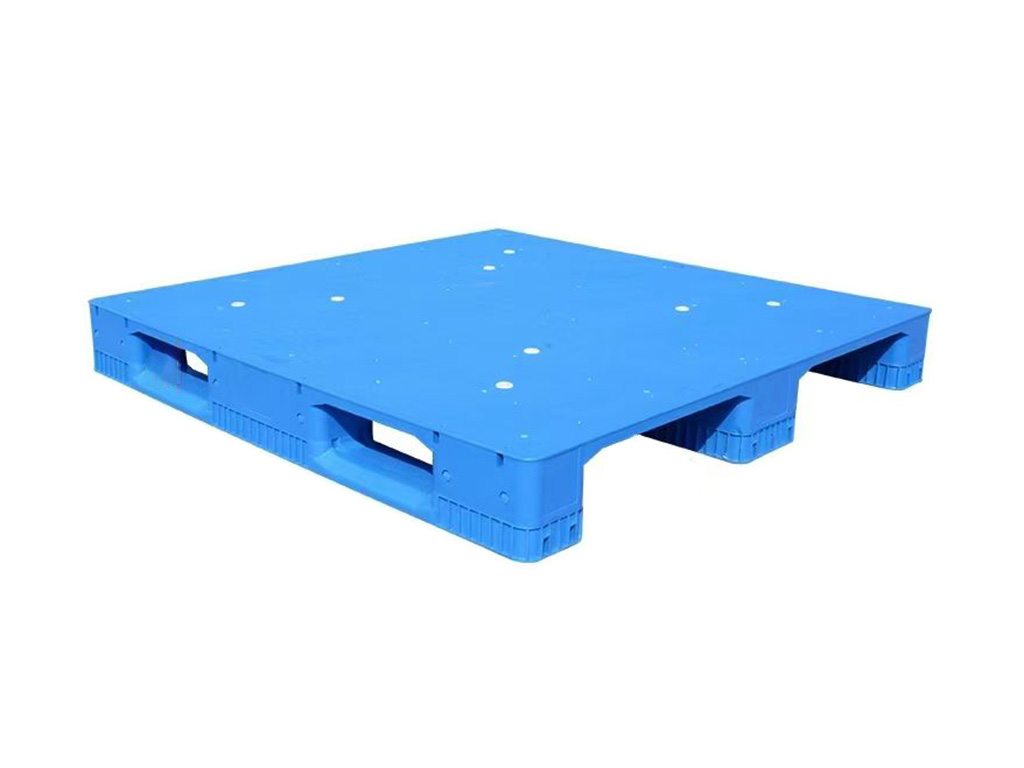

BH1414A Reinforced Solid 3-Runner
A 1400 × 1400 mm square reinforced solid pallet with a 150 mm A profile for very broad, evenly spread …
- Dimensions
- 1400 × 1400 × 150 mm
- Material
- HDPE
-

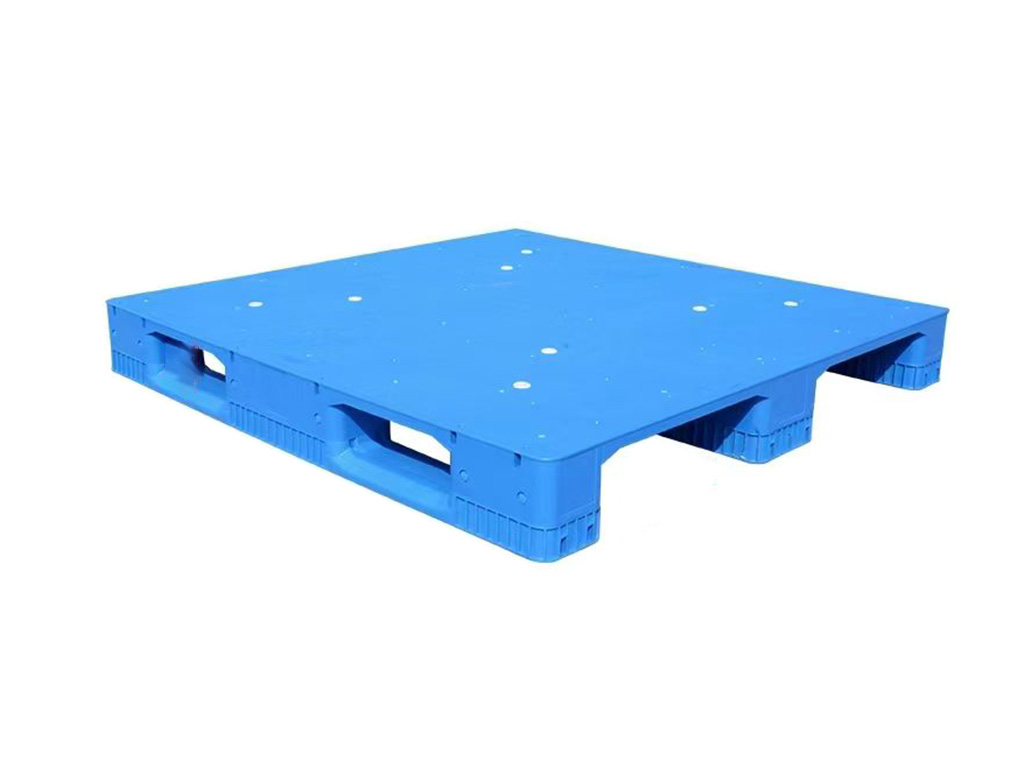

BH1414B Reinforced Solid 3-Runner
The deepest and broadest model in the family, BH1414B combines a 1400 × 1400 mm square closed deck with a …
- Dimensions
- 1400 × 1400 × 170 mm
- Material
- HDPE
Models & Reference Configurations
| Model | Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|---|
| BH1210 | 1200 × 1000 mm | 150 mm | 24.5 kg | 6–12 tubes |
| BH1211A | 1200 × 1100 mm | 150 mm | 26.0 kg | 6–12 tubes |
| BH1211B | 1200 × 1100 mm | 160 mm | 28.0 kg | 8–14 tubes |
| BH1212 | 1200 × 1200 mm | 150 mm | 28.5 kg | 8–14 tubes |
| BH1410 | 1400 × 1000 mm | 150 mm | 29.0 kg | 8–14 tubes |
| BH1411A | 1400 × 1100 mm | 150 mm | 31.0 kg | 8–14 tubes |
| BH1411B | 1400 × 1100 mm | 170 mm | 34.0 kg | 8–16 tubes |
| BH1412A | 1400 × 1200 mm | 150 mm | 33.0 kg | 8–16 tubes |
| BH1412B | 1400 × 1200 mm | 170 mm | 36.0 kg | 10–16 tubes |
| BH1414A | 1400 × 1400 mm | 150 mm | 38.0 kg | 10–18 tubes |
| BH1414B | 1400 × 1400 mm | 170 mm | 41.0 kg | 10–18 tubes |
Published values are reference configurations; steel layouts and load ratings can be adjusted around the equipment interface and operating profile.
