Grid Deck Full-Perimeter AS/RS Pallets
Ventilated HDPE pallets with a continuous full-perimeter base for stable stacking, conveyor contact and automated storage interfaces.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Colors
- Blue, green or custom
- Steel tubes
- Optional
Structure & Application Notes
The open grid deck supports airflow, drainage and quick visual inspection. Below it, the continuous full-perimeter base spreads contact around all four sides, improving stacking alignment and creating more available contact edges for mixed conveyor and support layouts.
Broad bottom contact for changing orientations
Unlike a three-runner pallet with one dominant travel direction, the full-perimeter base offers a more symmetrical lower interface. It is useful where pallets rotate, transfer between different conveyor directions or require positive perimeter contact when stacked. Six footprints cover compact, rectangular and broad square unit loads.
Configuration options
- Optional steel reinforcement for rack and transfer spans
- Anti-slip plugs and identification positions
- Custom colors, logos, printing and fleet numbering
- Interface review for rotation tables, conveyors, shuttles and racks
Choose the Right Footprint and Structure
-
BH1111 Grid Full-Perimeter
A compact 1100 × 1100 mm grid full-perimeter pallet with balanced square coverage and continuous bottom …
- Dimensions
- 1100 × 1100 × 150 mm
- Material
- HDPE
-

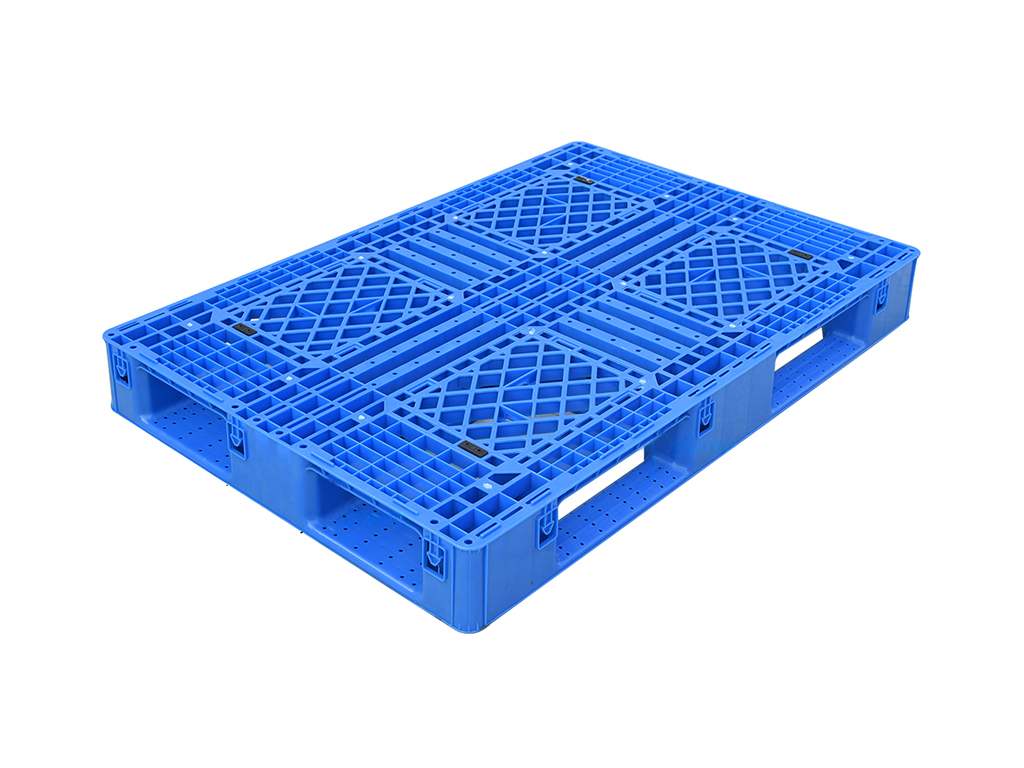

BH1208 Grid Full-Perimeter
A 1200 × 800 mm grid full-perimeter pallet for Euro-format loads that benefit from ventilation and …
- Dimensions
- 1200 × 800 × 150 mm
- Material
- HDPE
-
BH1210 Grid Full-Perimeter
A versatile 1200 × 1000 mm grid full-perimeter pallet for mainstream industrial packaging and …
- Dimensions
- 1200 × 1000 × 150 mm
- Material
- HDPE
-

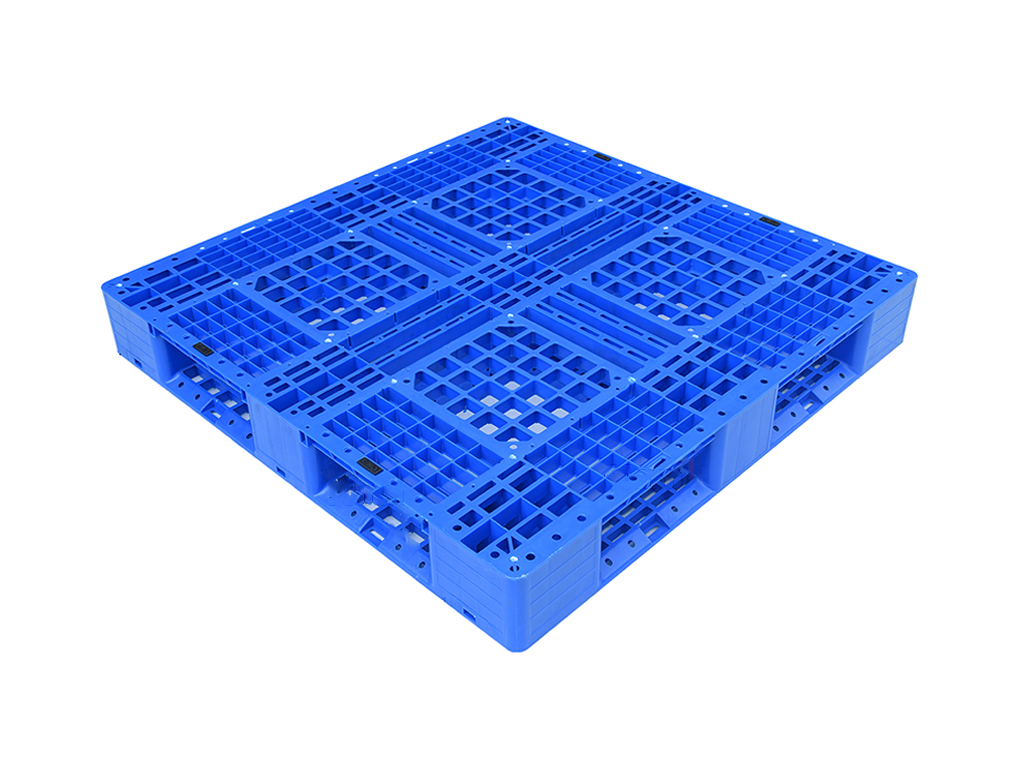

BH1212 Grid Full-Perimeter
A 1200 × 1200 mm square grid full-perimeter pallet for balanced carton arrays, drums and bulk packs. Both …
- Dimensions
- 1200 × 1200 × 150 mm
- Material
- HDPE
-

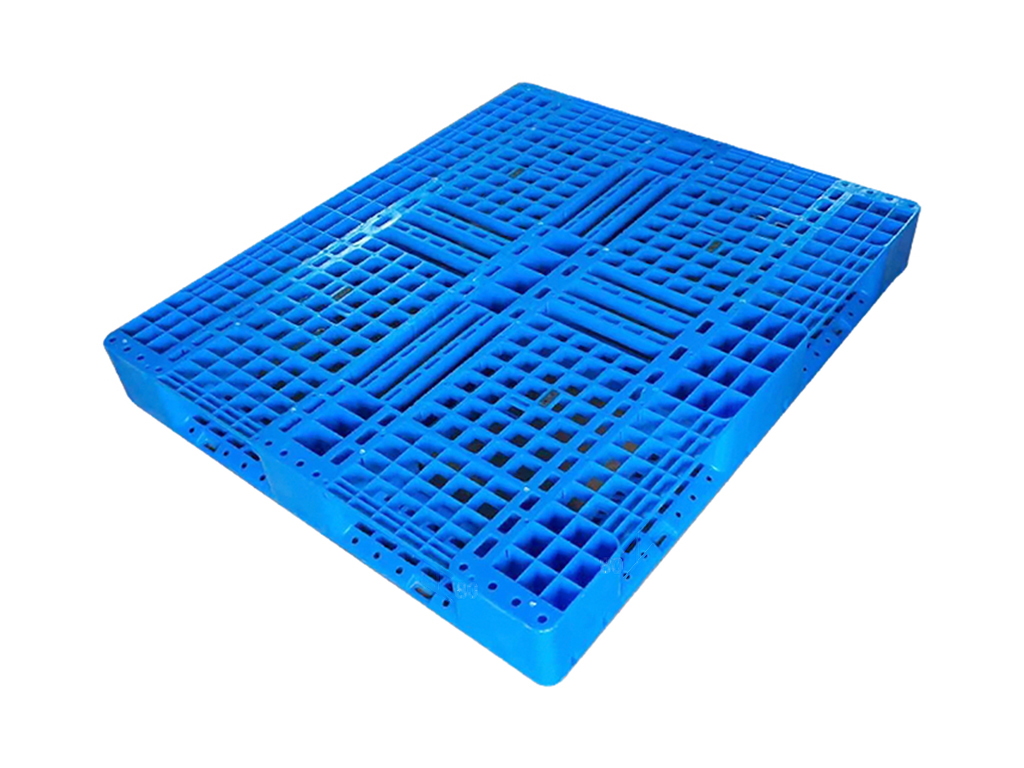

BH1311 Grid Full-Perimeter
A 1300 × 1100 mm grid full-perimeter pallet for loads that exceed mainstream industrial footprints but do …
- Dimensions
- 1300 × 1100 × 150 mm
- Material
- HDPE
-

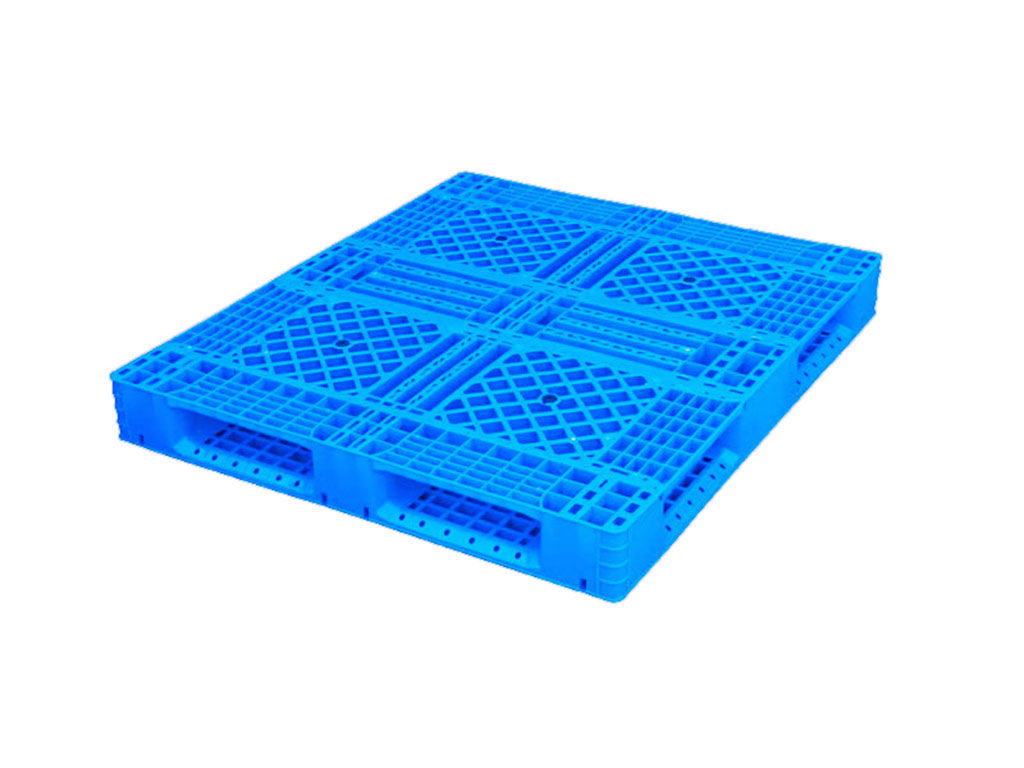

BH1412 Grid Full-Perimeter
The broadest model in the grid full-perimeter family, BH1412 provides a 1400 × 1200 mm ventilated deck …
- Dimensions
- 1400 × 1200 × 150 mm
- Material
- HDPE
Models & Reference Configurations
| Model | Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|---|
| BH1111 | 1100 × 1100 mm | 150 mm | 19.5 kg | 4–8 tubes |
| BH1208 | 1200 × 800 mm | 150 mm | 17.5 kg | 4–8 tubes |
| BH1210 | 1200 × 1000 mm | 150 mm | 20.0 kg | 4–8 tubes |
| BH1212 | 1200 × 1200 mm | 150 mm | 23.0 kg | 4–8 tubes |
| BH1311 | 1300 × 1100 mm | 150 mm | 24.0 kg | 5–10 tubes |
| BH1412 | 1400 × 1200 mm | 150 mm | 28.0 kg | 6–12 tubes |
Published values are reference configurations; steel layouts and load ratings can be adjusted around the equipment interface and operating profile.
