Solid Deck 3-Runner AS/RS Pallets
Easy-clean HDPE pallets with a closed upper deck, three continuous runners and optional steel reinforcement for controlled automated handling.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Solid deck · 3 runners
- Fork entry
- 4-way
- Colors
- Blue, green, white or custom
- Steel tubes
- Optional
Structure & Application Notes
The closed upper deck creates a continuous contact surface for bags, cartons with small feet and loads that can shed dust or liquid. It is easier to wipe down than an open grid and reduces the chance of loose material falling into automated equipment below.
Clean surface, stable machine direction
Three runners provide continuous support along the travel direction and a familiar interface for conveyor chains, rack beams and block stacking. The range progresses from the compact 1000 × 800 mm footprint to broad 1400 × 1200 mm unit loads, so the deck can be matched to both goods and equipment envelope.
Configuration options
- Optional steel reinforcement for deck and runner load paths
- Anti-slip pads for cartons, bags and returnable containers
- Custom colors, logos, printing and fleet identification
- Interface matching for rack, shuttle and conveyor systems
Choose the Right Footprint and Structure
-

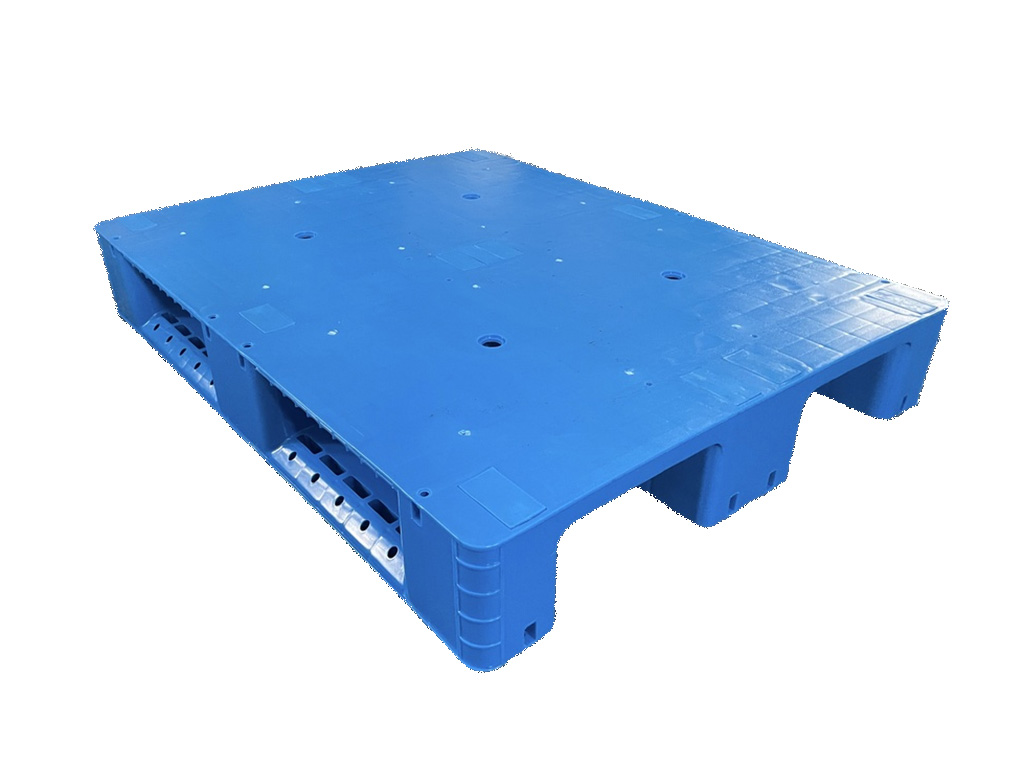

BH1008 Solid 3-Runner
A compact 1000 × 800 mm solid-deck pallet for smaller cartons, bags and production loads. The closed …
- Dimensions
- 1000 × 800 × 150 mm
- Material
- HDPE
-

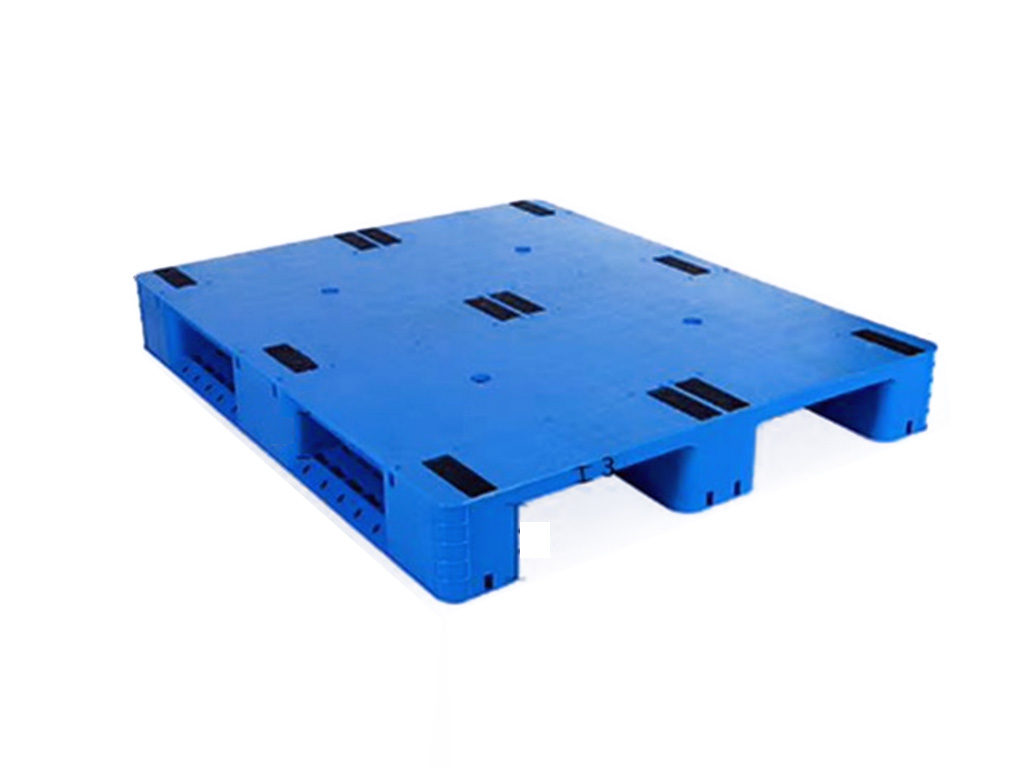

BH1111 Solid 3-Runner
A square 1100 × 1100 mm solid-deck pallet with a 165 mm overall height, combining balanced load coverage …
- Dimensions
- 1100 × 1100 × 165 mm
- Material
- HDPE
-
BH1210 Solid 3-Runner
A versatile 1200 × 1000 mm solid-deck pallet with a 160 mm profile for mainstream industrial unit loads. …
- Dimensions
- 1200 × 1000 × 160 mm
- Material
- HDPE
-

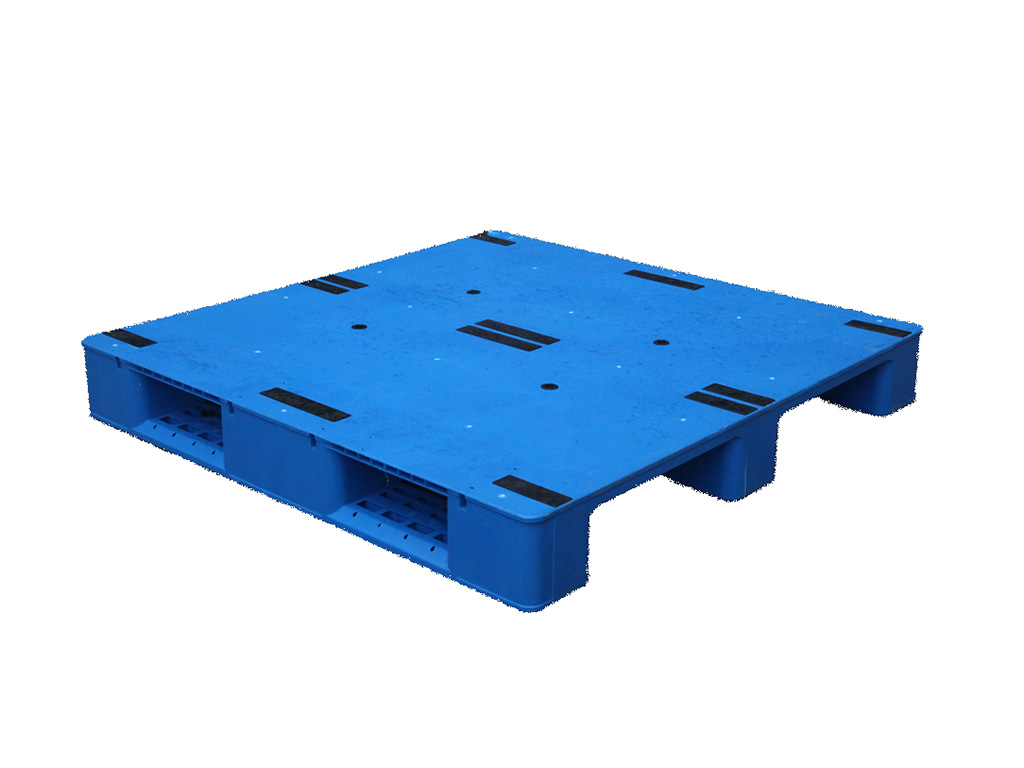

BH1212 Solid 3-Runner
A 1200 × 1200 mm square solid-deck pallet for broad carton arrays, drums and bagged goods. Its continuous …
- Dimensions
- 1200 × 1200 × 150 mm
- Material
- HDPE
-

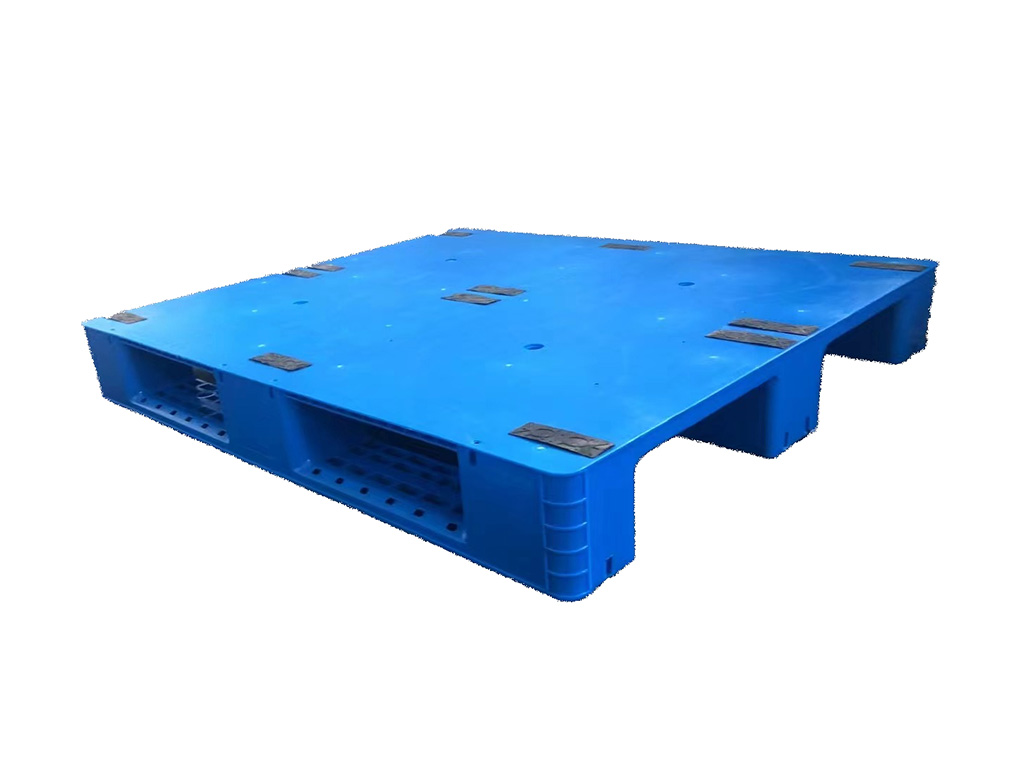

BH1311 Solid 3-Runner
A 1300 × 1100 mm solid-deck pallet positioned between mainstream and oversized formats. It gives wider …
- Dimensions
- 1300 × 1100 × 150 mm
- Material
- HDPE
-

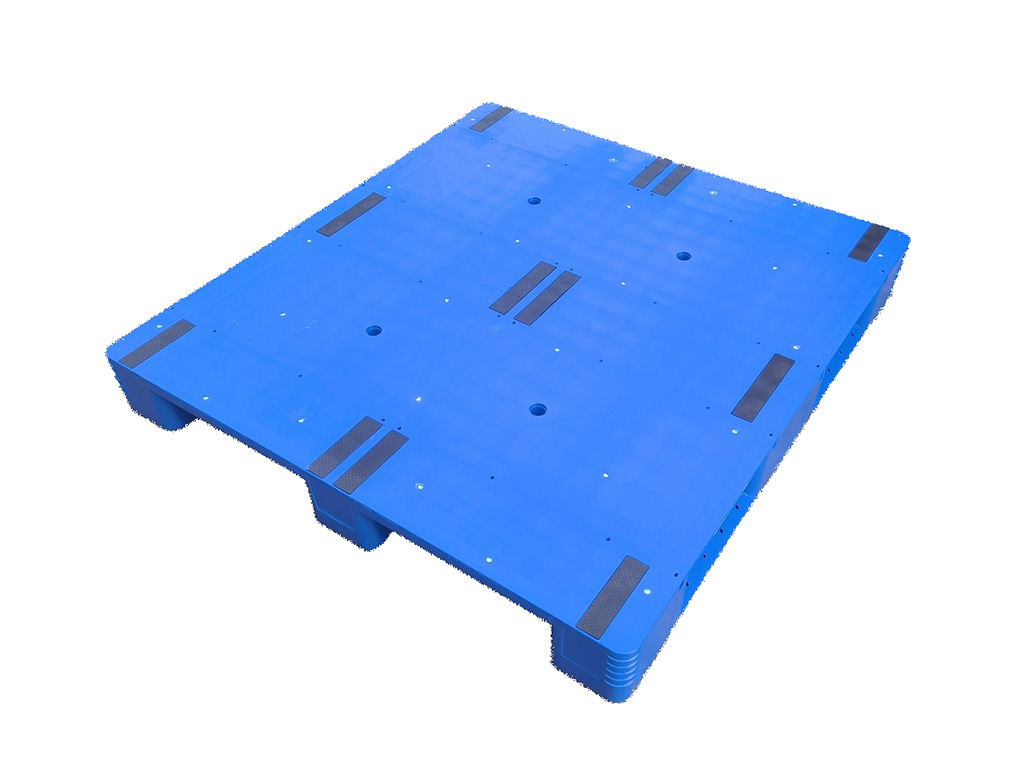

BH1412 Solid 3-Runner
The largest standard solid-deck model in this family, BH1412 supports broad cartons, bags and process …
- Dimensions
- 1400 × 1200 × 150 mm
- Material
- HDPE
Models & Reference Configurations
| Model | Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|---|
| BH1008 | 1000 × 800 mm | 150 mm | 14.5 kg | 4–8 tubes |
| BH1111 | 1100 × 1100 mm | 165 mm | 19.0 kg | 4–8 tubes |
| BH1210 | 1200 × 1000 mm | 160 mm | 20.5 kg | 4–8 tubes |
| BH1212 | 1200 × 1200 mm | 150 mm | 23.5 kg | 4–8 tubes |
| BH1311 | 1300 × 1100 mm | 150 mm | 24.5 kg | 5–10 tubes |
| BH1412 | 1400 × 1200 mm | 150 mm | 28.0 kg | 6–12 tubes |
Published values are reference configurations; steel layouts and load ratings can be adjusted around the equipment interface and operating profile.
