BH1111 Grid 3-Runner
A square 1100 × 1100 mm pallet with balanced load coverage and a consistent interface for compact automated storage positions. Its equal-sided footprint is well suited to square cartons, drums and unit loads that benefit from a centered support area.
Request a Quote- Dimensions

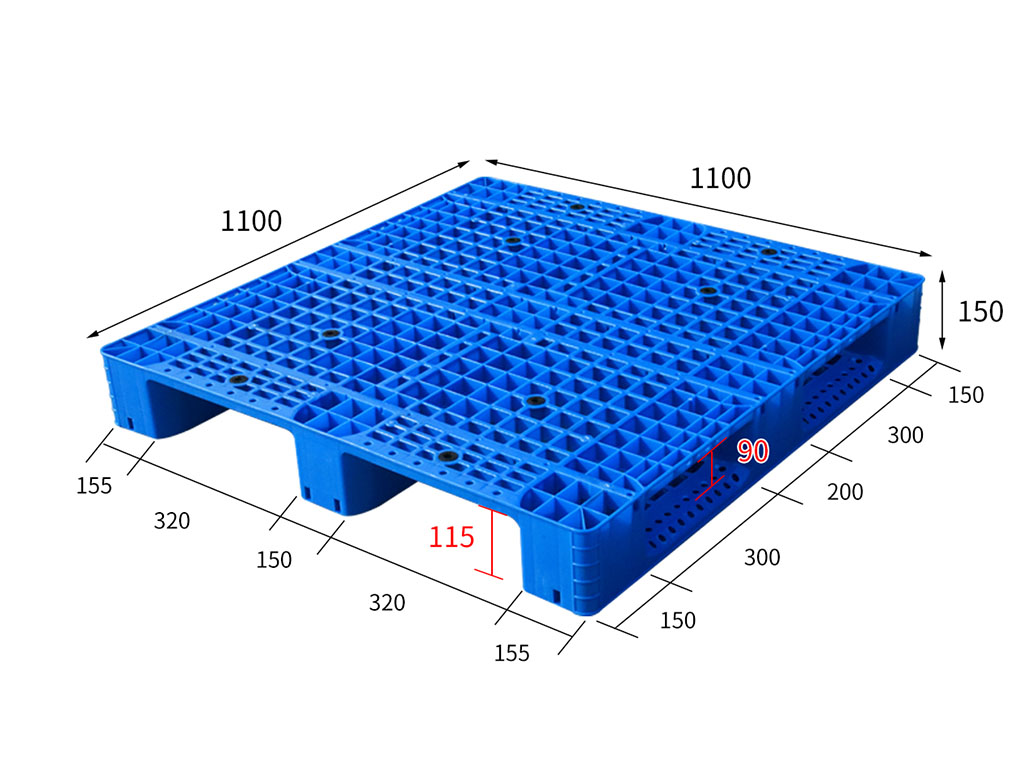

- 1100 × 1100 × 150 mm
- Reference weight
- 18.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,000 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,000 kg
AS/RS Performance Shaped Around This Footprint
Balanced support on a square footprint
The equal 1100 mm sides provide an even platform for square cartons, drums and compact process loads. The footprint is widely familiar across Pacific-region material flows and works well where a project wants one repeatable square load envelope from inbound check to storage position.
Predictable orientation inside the AS/RS
Although the deck is square, the continuous runners still establish a clear machine direction for rack and conveyor support. This combines flexible four-way forklift access with a stable automated interface and helps simplify slot dimensions when unit loads have similar length and width.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
