BH1208 Grid 3-Runner
A space-efficient Euro footprint for automated warehouses handling cartons, totes and export-ready unit loads. The narrow 800 mm width supports dense conveyor and rack planning while the 1200 mm runners maintain continuous support through the handling route.
Request a Quote- Dimensions

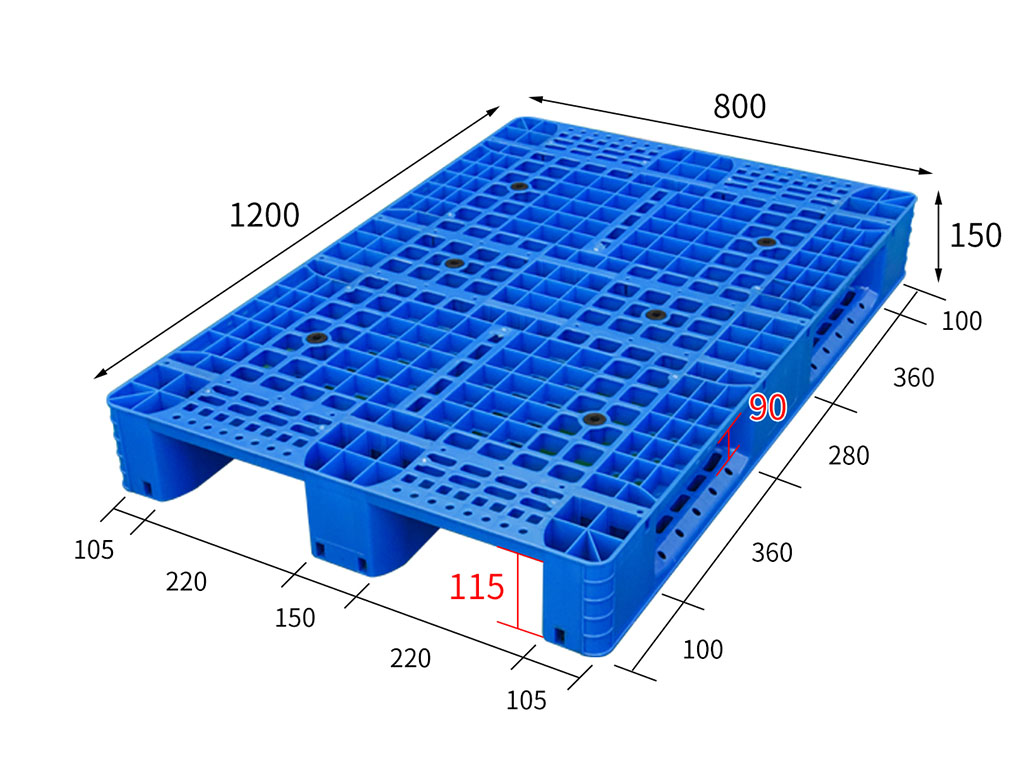

- 1200 × 800 × 150 mm
- Reference weight
- 17.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,000 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,000 kg
AS/RS Performance Shaped Around This Footprint
Dense storage with a proven modular size
At 1200 × 800 mm, BH1208 is the narrowest pallet in this family. It supports tighter lane and conveyor planning, makes efficient use of European modular packaging and keeps the unit load compact for high-throughput carton and tote operations.
Longitudinal runners for continuous transfer
The three 1200 mm runners present clear bearing paths for chain conveyors and rack supports. Its narrower 800 mm width also reduces the travel envelope at transfer points, helping automated systems maintain density without sacrificing four-way handling around staging areas.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
