BH1210 Grid 3-Runner
A versatile 1200 × 1000 mm three-runner pallet that balances storage density, unit-load coverage and compatibility with common automated handling layouts. It offers more deck width than a Euro footprint without moving into a large-format AS/RS position.
Request a Quote- Dimensions

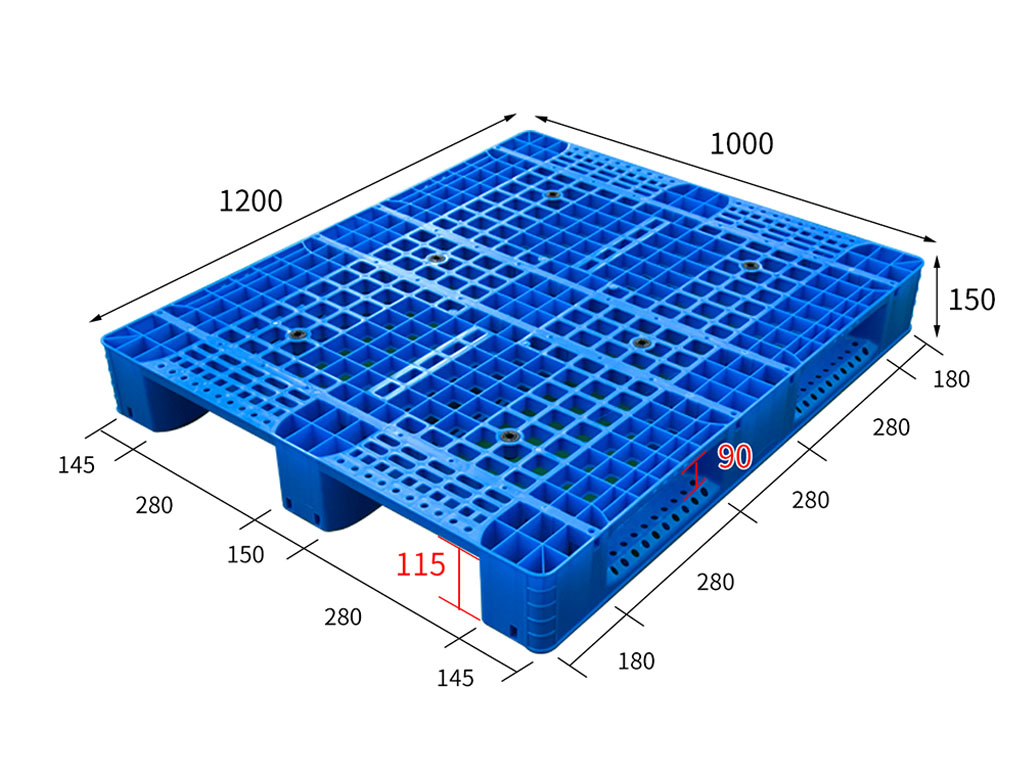

- 1200 × 1000 × 150 mm
- Reference weight
- 19.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,500 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,200 kg
AS/RS Performance Shaped Around This Footprint
A balanced industrial footprint
The 1200 × 1000 mm format provides more deck width than a Euro-size pallet while remaining compact enough for high-density storage. It suits mixed cartons, returnable containers and industrial unit loads that need a generous support area without moving to an oversized AS/RS position.
Smooth transfer through the automated flow
Three runners follow the 1200 mm length, creating continuous bearing lines for rack beams, chain conveyors and shuttle pickup zones arranged in the same direction. The rectangular footprint also gives controls and sensors a clear, repeatable orientation at inbound profile checks and transfer stations.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
