BH1412-W Grid 3-Runner
A 160 mm-high 1400 × 1200 mm pallet with runners following the 1200 mm width. Its transverse bearing lines create a dedicated option for automated systems whose rack rails, chain strands or shuttle pickup direction is arranged across the shorter pallet axis.
Request a Quote- Dimensions
- 1400 × 1200 × 160 mm
- Reference weight
- 27.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 5–10 tubes
- Static load
- 5,000 kg
- Dynamic load
- 1,800 kg
- Rack load
- 1,400 kg
AS/RS Performance Shaped Around This Footprint
Transverse support for a different machine interface

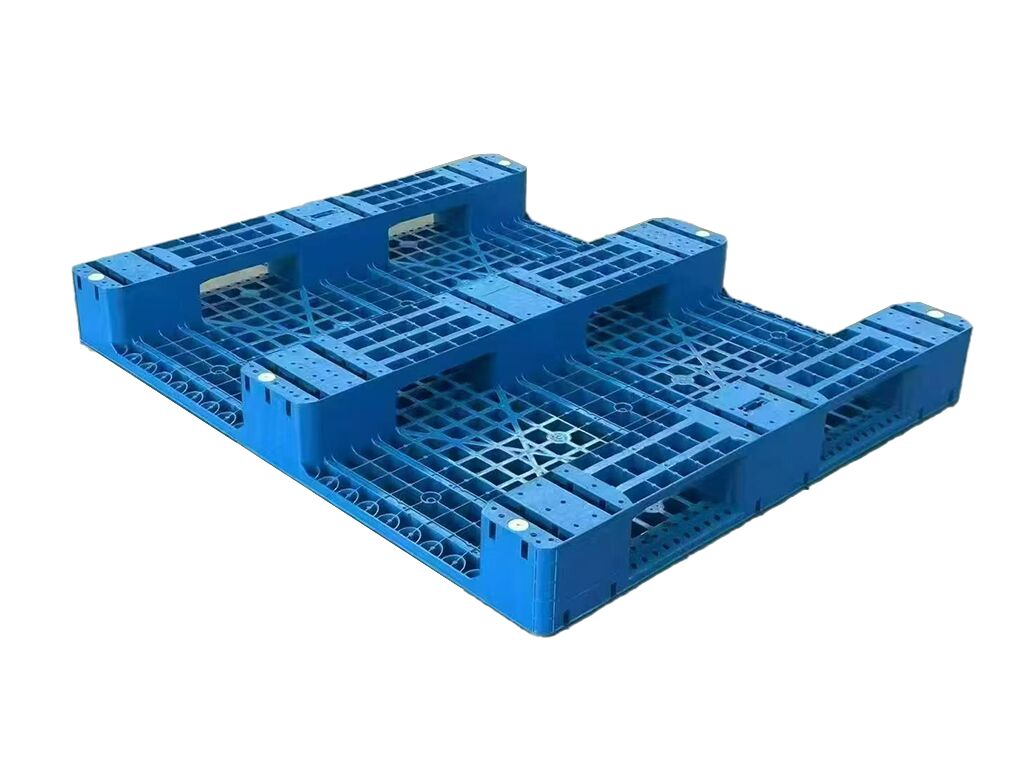

BH1412-W uses the same broad 1400 × 1200 mm load platform as the other BH1412 variants, but turns the three runners so their length follows the 1200 mm pallet width. This creates continuous bearing lines across the shorter axis and gives system designers a distinct option for rack rails, chain strands or shuttle forks arranged around that direction.
A deeper 160 mm structure
The 160 mm profile provides a substantial base for the transverse runner geometry and its reinforcement paths. It is well suited to wide industrial loads whose automated route has already been designed around widthwise support, while four-way fork entry keeps staging and maintenance handling straightforward.

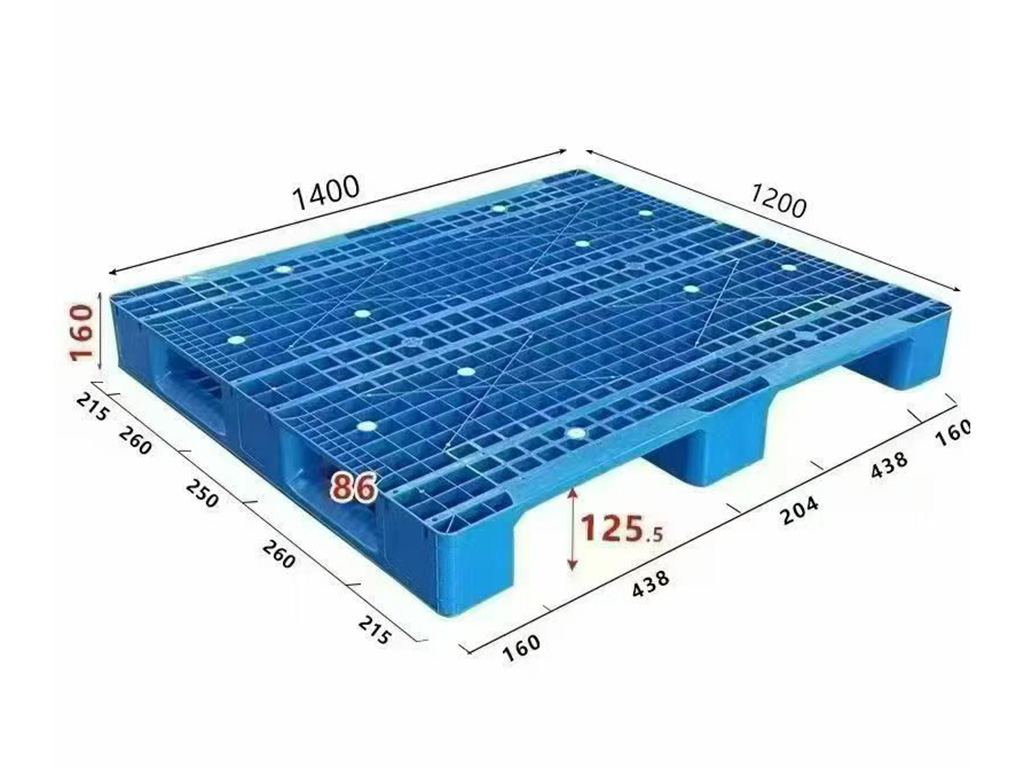

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
