BH1412A Grid 3-Runner
A low-profile 1400 × 1200 mm platform that provides broad load coverage while preserving vertical clearance inside automated storage locations. The 150 mm body suits wide machinery cartons and returnable packaging where usable load height remains a priority.
Request a Quote- Dimensions
- 1400 × 1200 × 150 mm
- Reference weight
- 26.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 5–10 tubes
- Static load
- 5,000 kg
- Dynamic load
- 1,800 kg
- Rack load
- 1,400 kg
AS/RS Performance Shaped Around This Footprint
Broad support in a 150 mm profile
BH1412A pairs a 1400 × 1200 mm deck with a familiar 150 mm overall height. The generous platform supports wide machinery cartons, layered components and large returnable packaging while keeping more of the storage position available for the goods themselves.
Lengthwise stability for large unit loads
Its runners follow the 1400 mm axis, giving long continuous support under the load and a direct interface for similarly oriented rack rails or chain conveyors. The A variant is the natural BH1412 choice when vertical clearance is a priority.

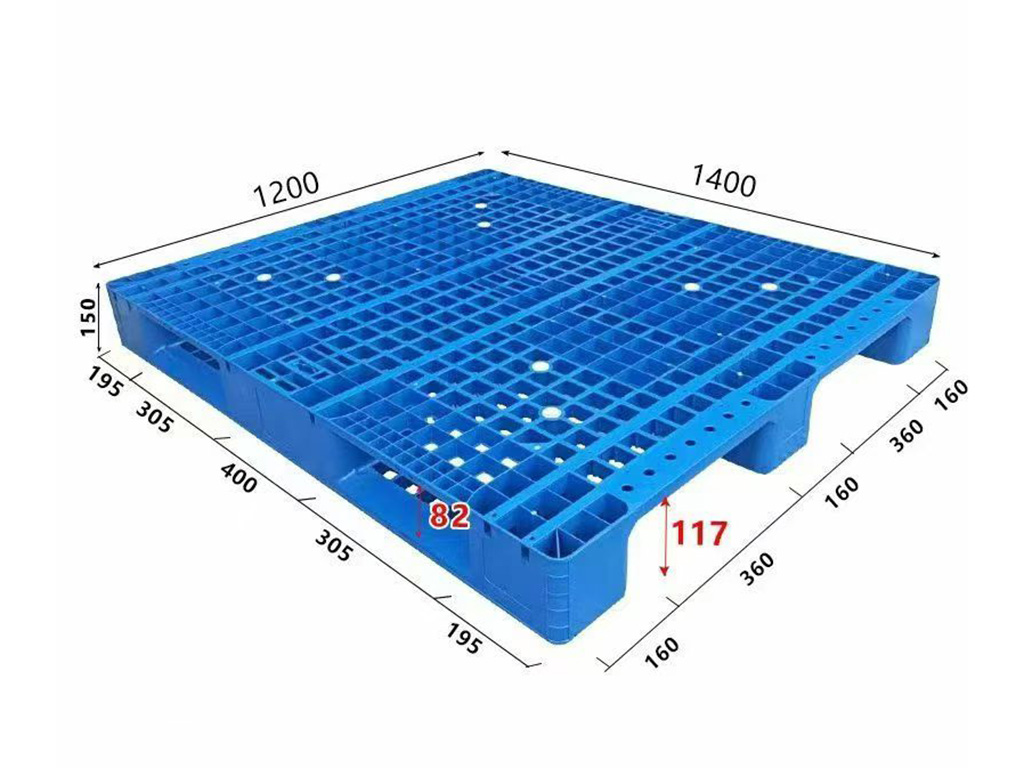

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
