BH1514 Grid 3-Runner
A near-square 1500 × 1400 mm platform that spreads large automated warehouse loads across a broad support area. Its 155 mm structure and wide deck suit bulk containers, large bagged loads and industrial packaging built around a dedicated large-format position.
Request a Quote- Dimensions
- 1500 × 1400 × 155 mm
- Reference weight
- 34.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure
- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 6–12 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,000 kg
- Rack load
- 1,600 kg
AS/RS Performance Shaped Around This Footprint
Broad, near-square support for large packs
With only 100 mm difference between length and width, BH1514 offers a generous platform for bulk containers, large bagged loads and wide industrial packaging. The near-square deck spreads the load across a broad area while the runner direction still gives the AS/RS a fixed handling axis.
A dedicated large-format machine interface
The 155 mm body and continuous 1500 mm runners form a substantial base for long dwell times and repeat transfers. A bottom view makes the bearing geometry easy to review against support rails, chain strands and shuttle contact positions during system design.

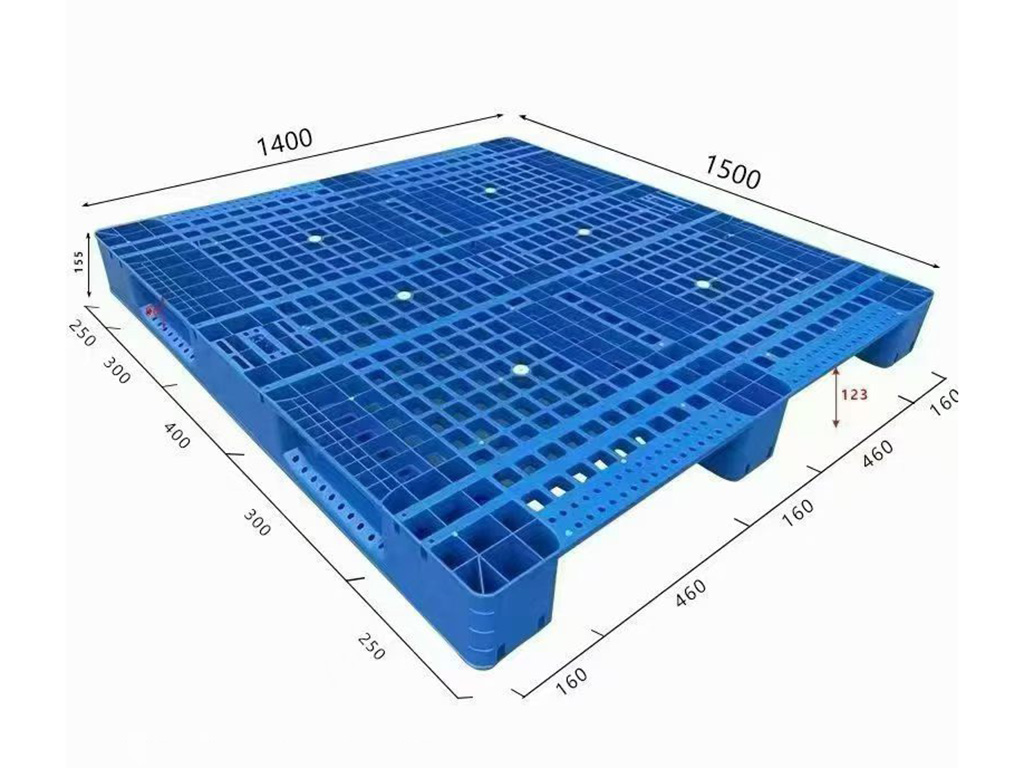

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
