BH1712 Grid 3-Runner
An extra-long 1700 × 1200 mm pallet for production assemblies, panel packs and dedicated automated storage cells. Its continuous runner paths and extended deck support long goods through profile checking, conveyor transfer and rack storage.
Request a Quote- Dimensions
- 1700 × 1200 × 155 mm
- Reference weight
- 36.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue or custom
- Structure

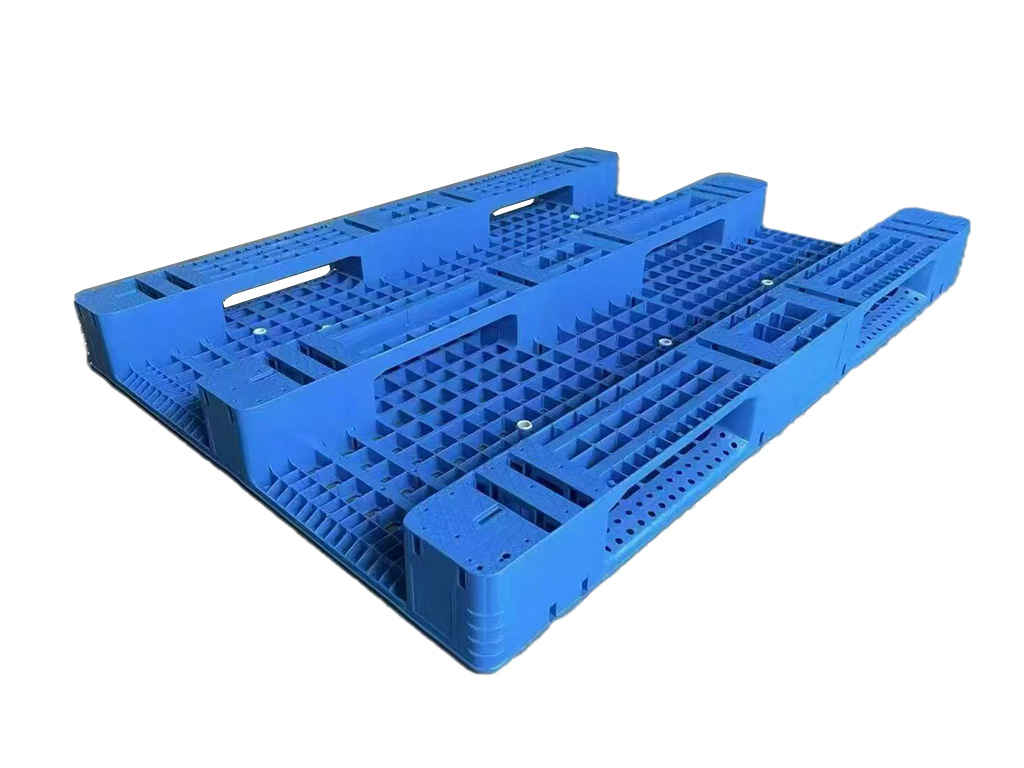

- Grid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 6–12 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,000 kg
- Rack load
- 1,600 kg
AS/RS Performance Shaped Around This Footprint
Extra length for production-scale unit loads
The 1700 × 1200 mm deck supports panel packs, long machinery components and production assemblies that need a stable base from manufacturing cell to storage. It reduces end overhang and keeps the unit load aligned with a purpose-designed large-format position.
Designed around a dedicated automated route
At this length, runner contact and reinforcement layout become central parts of the machine interface. BH1712 provides clear lengthwise bearing lines and a 155 mm profile for a predictable journey through profile check, conveyor transfer and rack storage.

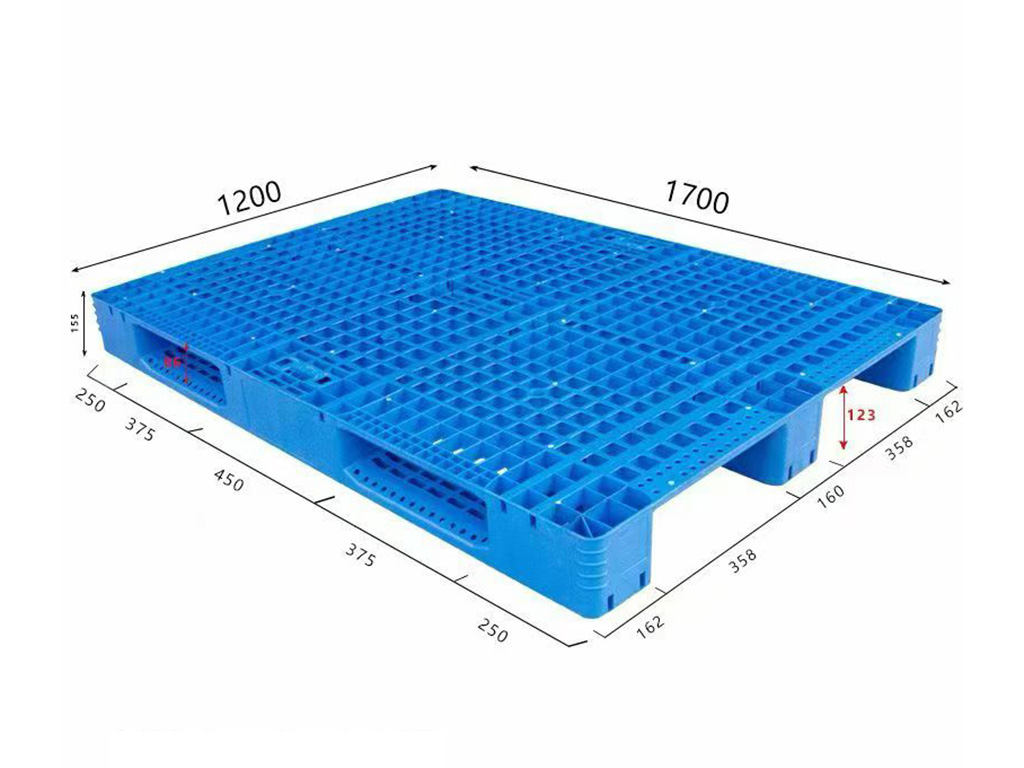

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
