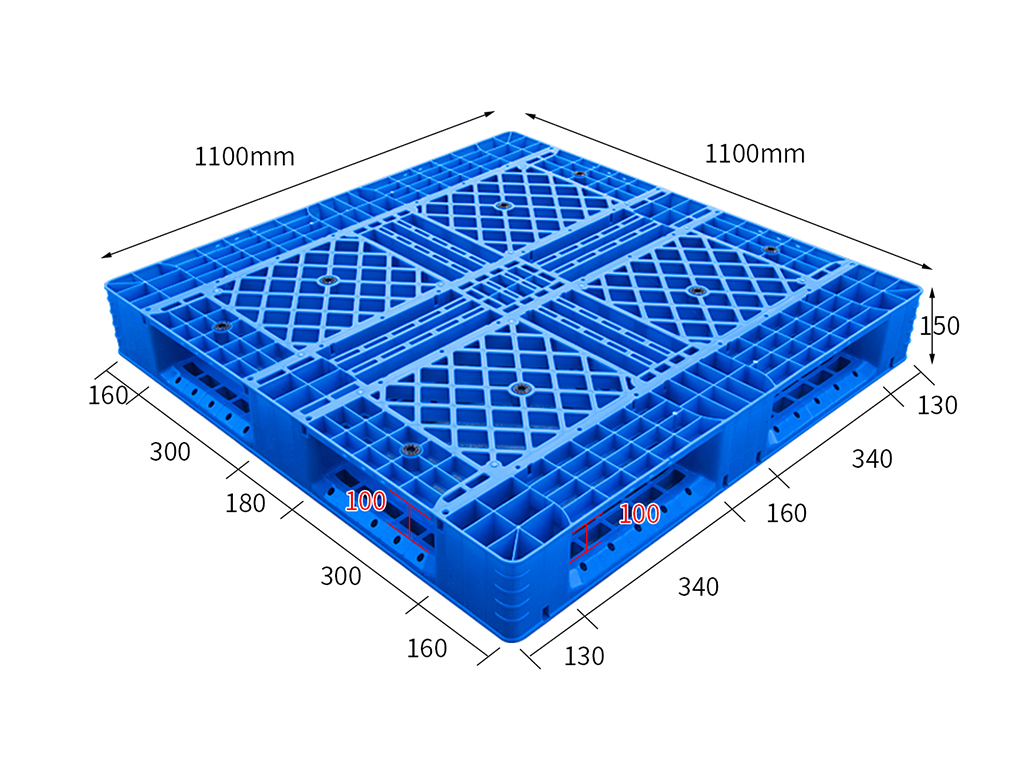

BH1111 Grid Full-Perimeter
A compact 1100 × 1100 mm grid full-perimeter pallet with balanced square coverage and continuous bottom contact around all four sides. It suits square carton groups, drums and workflows that change orientation.
Request a Quote- Dimensions
- 1100 × 1100 × 150 mm
- Reference weight
- 19.5 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green or custom
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,000 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,000 kg
AS/RS Performance Shaped Around This Footprint
Square footprint with all-around base contact
Equal sides simplify centering for square loads and leave similar edge support in every direction. The open grid supports airflow and inspection, while the perimeter base improves alignment when pallets are stacked.
Automated handling characteristics
The symmetric lower interface is useful where a pallet rotates or moves between conveyor directions. Support can be picked up along more edges than on a conventional three-runner base.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
