BH1210 Grid Full-Perimeter
A versatile 1200 × 1000 mm grid full-perimeter pallet for mainstream industrial packaging and mixed-direction automated transport. It combines a familiar deck size with stable all-around base contact.
Request a Quote- Dimensions

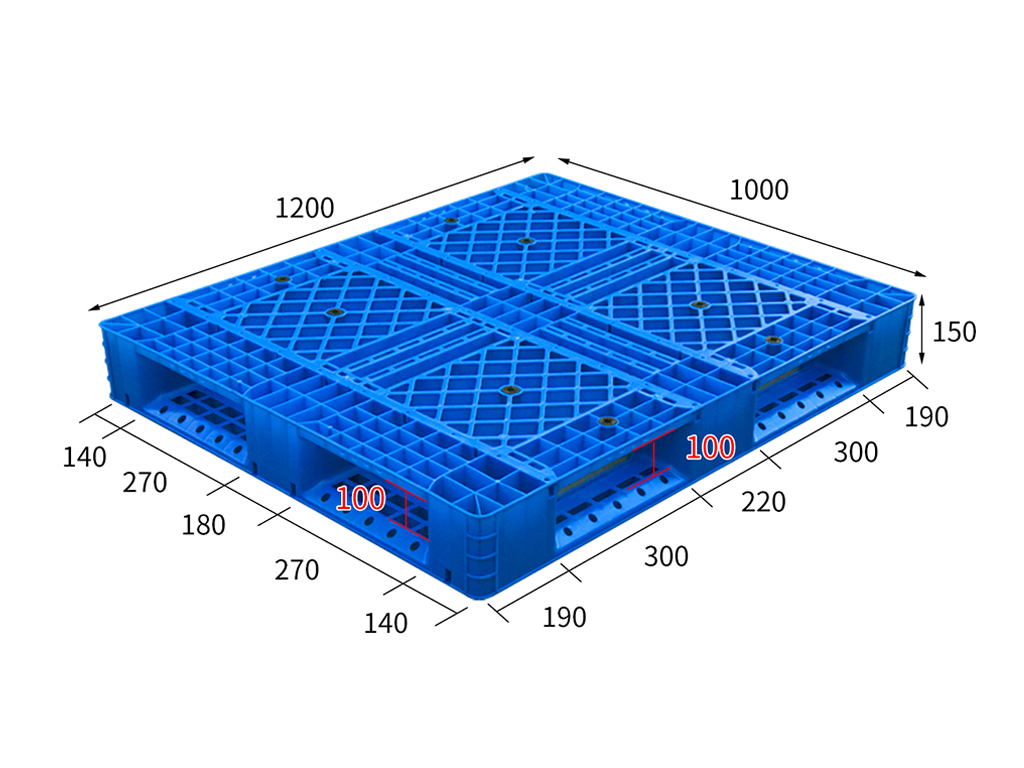

- 1200 × 1000 × 150 mm
- Reference weight
- 20.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green or custom
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,000 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,000 kg
AS/RS Performance Shaped Around This Footprint
Industrial footprint for mixed-direction flows
The footprint accommodates mixed carton patterns and returnable containers without becoming square. Its grid surface supports airflow and fast inspection, making it a flexible base for general industrial loads.
Automated handling characteristics
A continuous perimeter gives conveyors and transfer devices more freedom to contact the pallet from different directions. This is especially useful where a single unit load passes through several machine orientations.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
