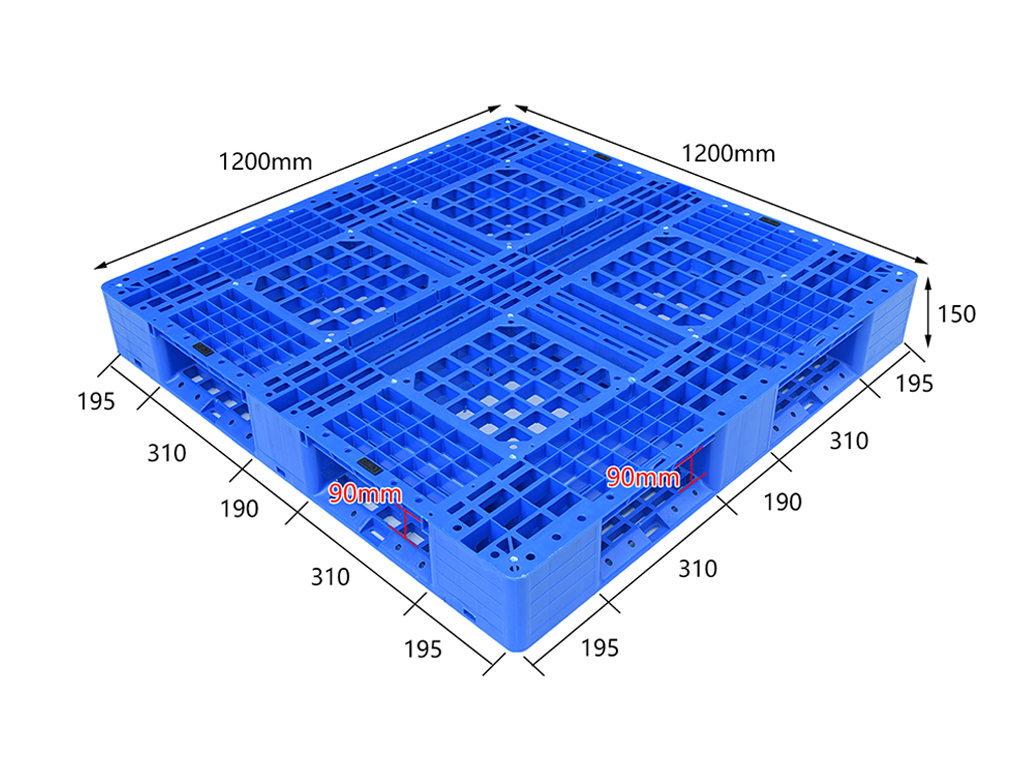

BH1212 Grid Full-Perimeter
A 1200 × 1200 mm square grid full-perimeter pallet for balanced carton arrays, drums and bulk packs. Both deck and base geometry support loads that may rotate without changing their plan envelope.
Request a Quote- Dimensions
- 1200 × 1200 × 150 mm
- Reference weight
- 23.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green or custom
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Steel-tube range
- 4–8 tubes
- Static load
- 4,000 kg
- Dynamic load
- 1,500 kg
- Rack load
- 1,100 kg
AS/RS Performance Shaped Around This Footprint
Direction-neutral square deck and base
Equal dimensions suit goods that spread evenly in both axes and make edge allowance easy to balance. The ventilated deck reduces closed pockets beneath broad loads.
Automated handling characteristics
The square footprint and perimeter base are well matched to rotation tables and orthogonal transfers. The pallet can change direction while retaining comparable lower support geometry.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
