BH1311 Grid Full-Perimeter
A 1300 × 1100 mm grid full-perimeter pallet for loads that exceed mainstream industrial footprints but do not require the largest family size. It adds edge support while retaining balanced conveyor contact.
Request a Quote- Dimensions

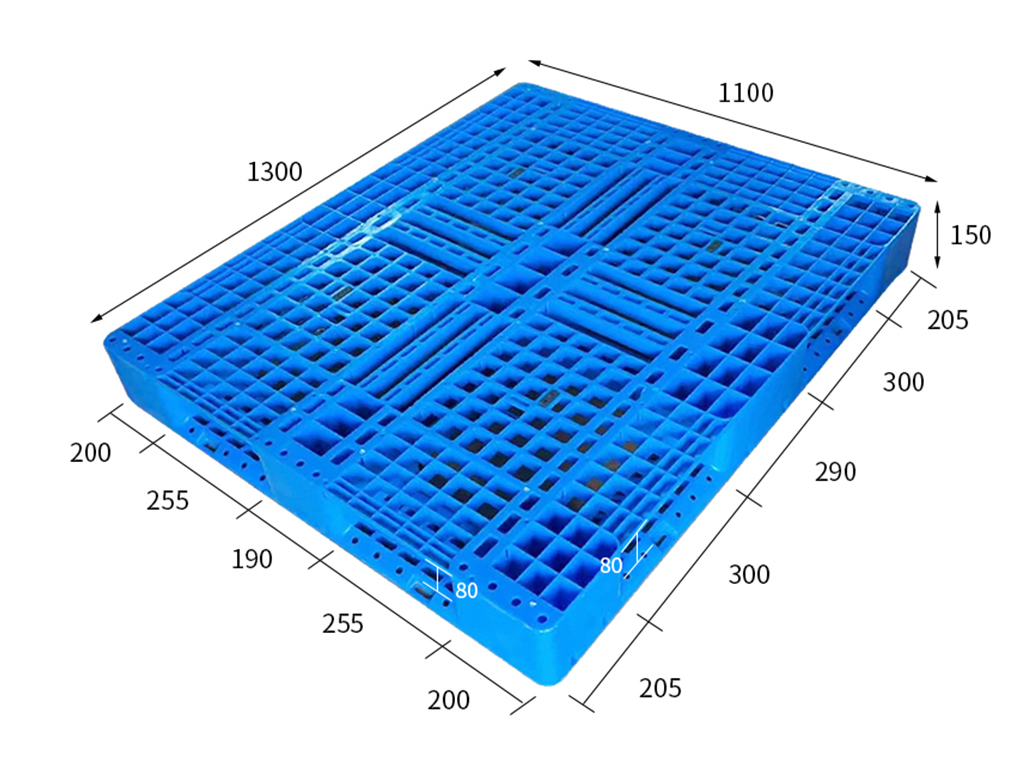

- 1300 × 1100 × 150 mm
- Reference weight
- 24.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green or custom
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Steel-tube range
- 5–10 tubes
- Static load
- 4,500 kg
- Dynamic load
- 1,700 kg
- Rack load
- 1,200 kg
AS/RS Performance Shaped Around This Footprint
Intermediate size with broader perimeter support
The extra length and width reduce overhang for larger cartons and fixtures. It remains more compact than BH1412 and is therefore easier to place in projects with moderate aisle and slot envelopes.
Automated handling characteristics
Full-perimeter contact supports direction changes across the enlarged footprint. Optional reinforcement can be aligned with rack spans and cross-transfer contact points.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
