BH1412 Grid Full-Perimeter
The broadest model in the grid full-perimeter family, BH1412 provides a 1400 × 1200 mm ventilated deck and continuous four-sided base. It supports large cartons, fixtures and wide unit loads through mixed-direction handling.
Request a Quote- Dimensions
- 1400 × 1200 × 150 mm
- Reference weight
- 28.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green or custom
- Structure
- Grid deck · full-perimeter base
- Fork entry
- 4-way
- Steel-tube range
- 6–12 tubes
- Static load
- 4,500 kg
- Dynamic load
- 1,800 kg
- Rack load
- 1,300 kg
AS/RS Performance Shaped Around This Footprint
Large ventilated deck with four-sided support
The generous plan area reduces product overhang for loads that need real width in both directions. Grid openings retain airflow and drainage across a surface that would otherwise form a large closed pocket.
Automated handling characteristics
The continuous perimeter helps large pallets transfer between different machine directions without relying on only three runner lines. Steel reinforcement can be concentrated around the support pattern used by rack, shuttle and conveyor.

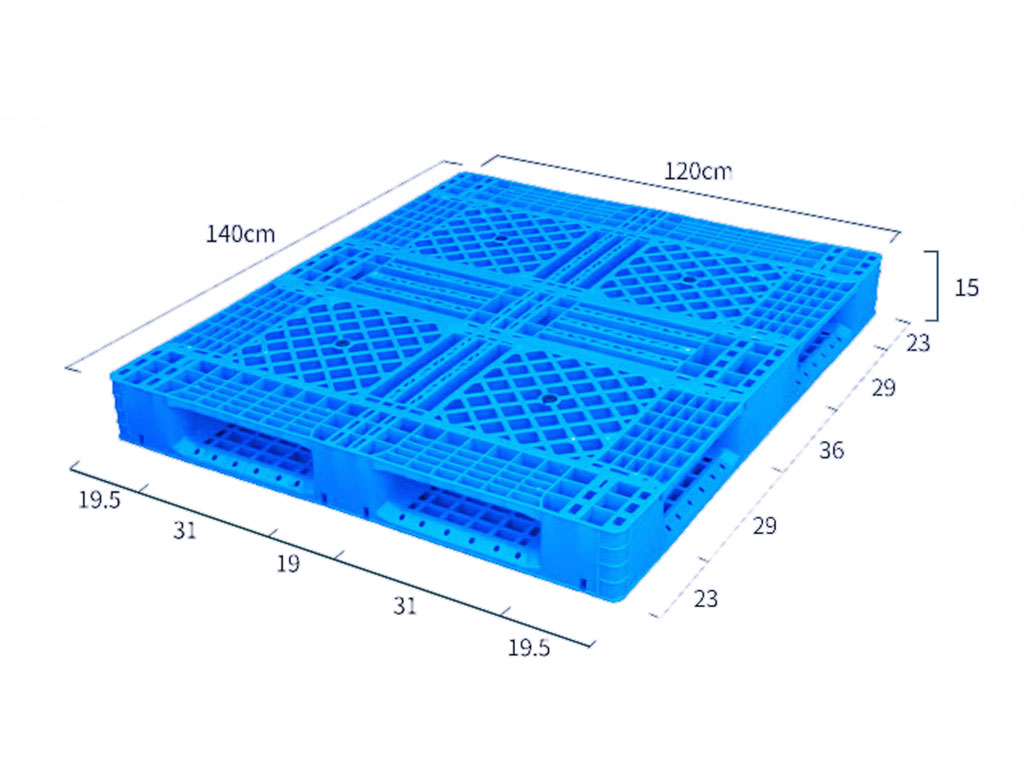

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
