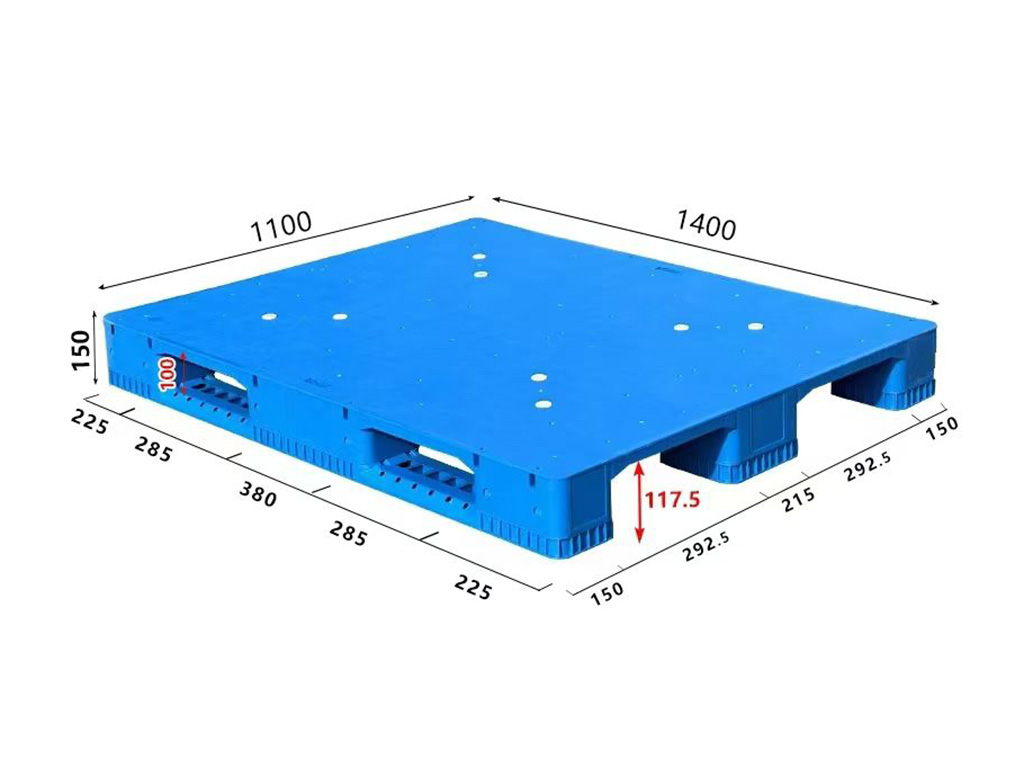

BH1411A Reinforced Solid 3-Runner
The 150 mm A version of the 1400 × 1100 mm reinforced solid pallet gives elongated loads extra width without increasing structural height. It balances a broad deck with compact storage clearance.
Request a Quote- Dimensions
- 1400 × 1100 × 150 mm
- Reference weight
- 31.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green, white or custom
- Structure
- Reinforced solid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 8–14 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,000 kg
- Rack load
- 1,800 kg
AS/RS Performance Shaped Around This Footprint
Broad rectangular deck in a compact A profile
The 1100 mm width supports fuller packaging patterns than BH1410 while preserving a clearly rectangular shape. It suits fixtures and carton groups that are broad but still have one dominant direction.
Automated handling characteristics
The lower A profile is useful where rack pitch or transfer clearance is tightly controlled. Reinforcement capacity remains focused along the 1400 mm span and its three runner support lines.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
