BH1411B Reinforced Solid 3-Runner
The 170 mm B version of BH1411 uses a deeper section for demanding 1400 × 1100 mm loads. It keeps the same deck outline as the A version while increasing vertical structure and steel-routing space.
Request a Quote- Dimensions
- 1400 × 1100 × 170 mm
- Reference weight
- 34.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green, white or custom
- Structure
- Reinforced solid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 8–16 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,200 kg
- Rack load
- 2,000 kg
AS/RS Performance Shaped Around This Footprint
Deep B profile for the 1400 × 1100 footprint
The deck supports wide elongated goods on a continuous surface, while the B structure addresses longer transitions and concentrated load zones. It is the stronger vertical alternative to BH1411A.
Automated handling characteristics
At 170 mm high, the pallet develops more section depth between deck and runner base. This helps the reinforced load path remain stable as the unit moves from conveyor support to shuttle or rack beams.

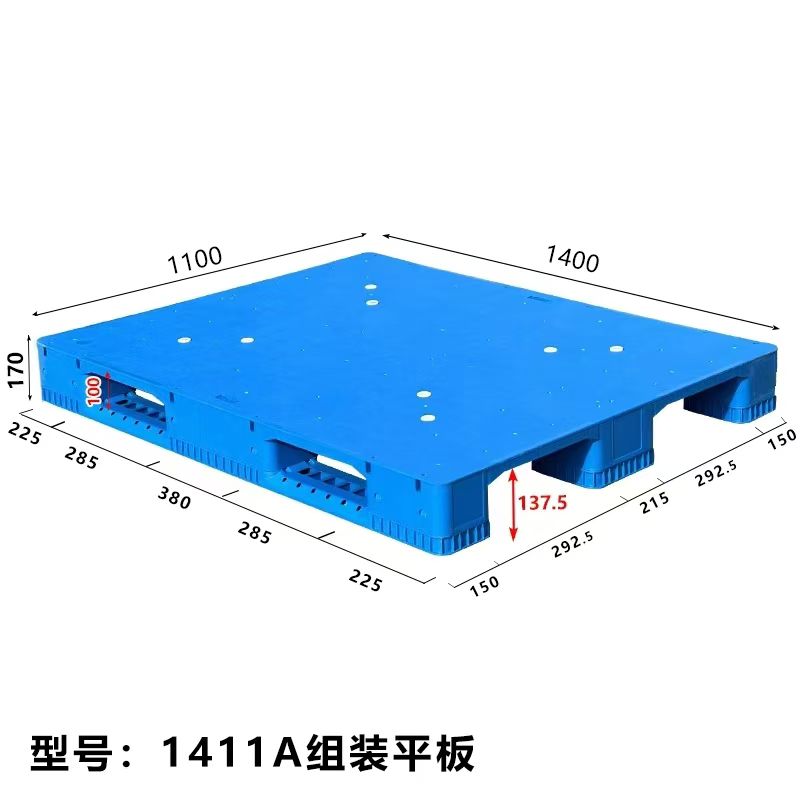

Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
