BH1414A Reinforced Solid 3-Runner

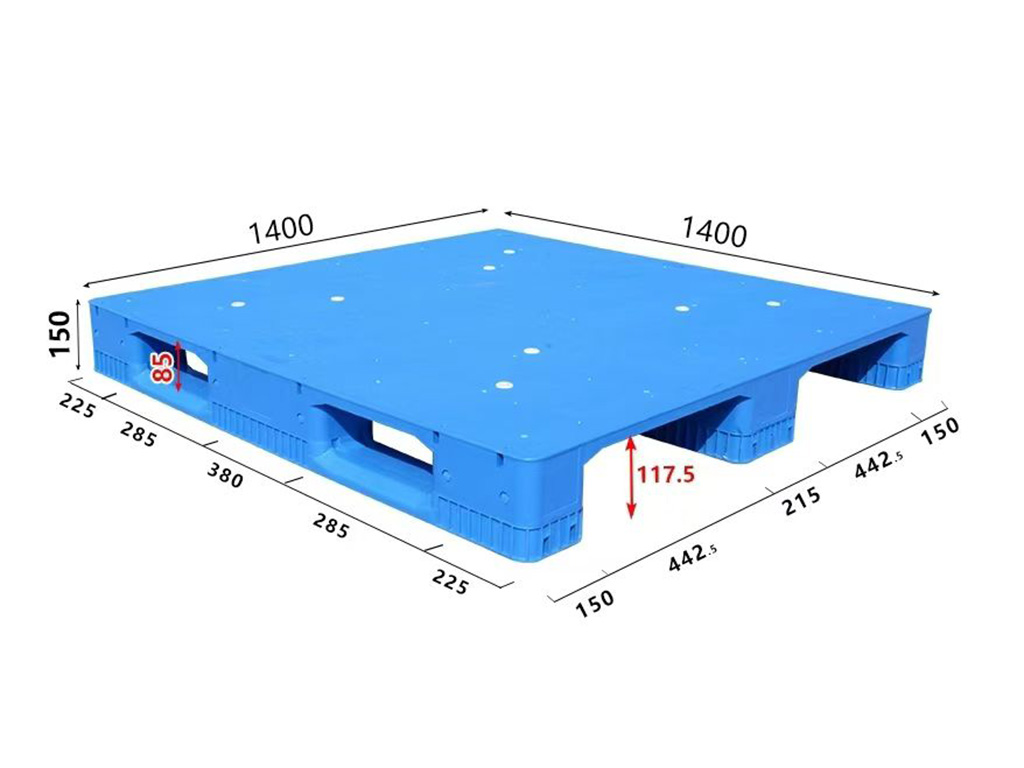

A 1400 × 1400 mm square reinforced solid pallet with a 150 mm A profile for very broad, evenly spread unit loads. Its closed deck provides a large direction-neutral contact area without excessive structural height.
Request a Quote- Dimensions
- 1400 × 1400 × 150 mm
- Reference weight
- 38.0 kg
- Material
- HDPE
- Process
- Injection molded
- Colors
- Blue, green, white or custom
- Structure
- Reinforced solid deck · 3 runners
- Fork entry
- 4-way
- Steel-tube range
- 10–18 tubes
- Static load
- 6,000 kg
- Dynamic load
- 2,400 kg
- Rack load
- 2,200 kg
AS/RS Performance Shaped Around This Footprint
Very broad square deck in the lower profile
The equal-sided deck is intended for bulk packs, drums and large carton patterns whose width approaches their length. It leaves balanced edge support and avoids forcing a broad load onto a narrow platform.
Automated handling characteristics
Because the plan area is large, steel placement and machine support alignment are central to the configuration. The A profile keeps storage height efficient while the runners establish a fixed travel axis.
Structure & Dimensional Details
Steel layouts and load ratings can be adjusted for conveyor, shuttle and rack-support conditions.
